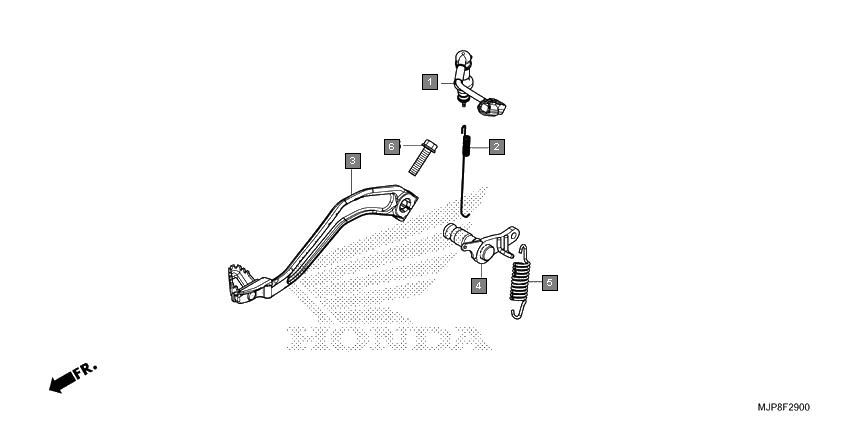

Motorcycles Africa Twin CRF1000DH Frame Rear brake pedal
Ref.No. Part No. Description Oty
1 35350MJPG51 SWITCH ASSY., RR. STOP(TOYO) 1
2 35357HN8000 SPRING, STOP SWITCH 1
3 46500MJPG50 PEDAL COMP., RR. BRAKE 1
4 46502MJPG50 ARM COMP., MIDDLE 1
5 46513MJPG50 SPRING, BRAKE RETURN 1
6 957010803208 BOLT, FLANGE, 8X32 1
