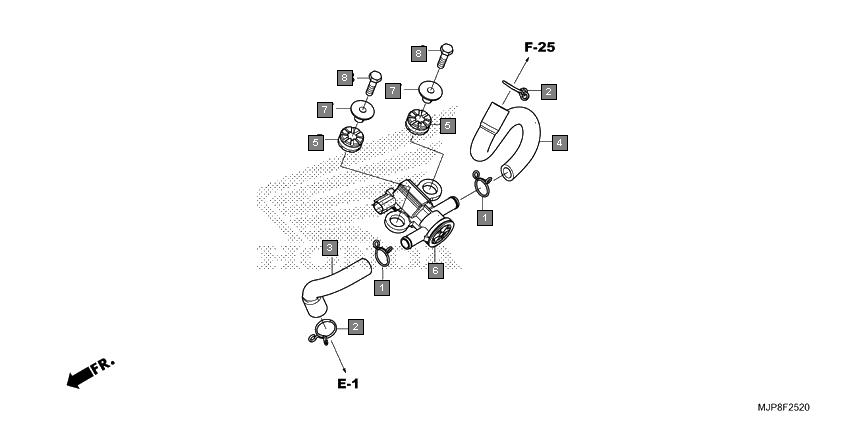

Motorcycles Africa Twin CRF1000DH Frame Air injection solenoid valve
Ref.No. Part No. Description Oty
1 15772551000 CLIP, BREATHER TUBE 2
2 17369KB4670 CLIP, BREATHER TUBE 2
3 18613MJPG50 TUBE, AIR INJECTION SOLENOID 1
4 18653MJPG50 TUBE(AISV-AIR CLEANER) 1
5 33115KVK900 RUBBER, HEADLIGHT 2
6 36450KVK902 VALVE ASSY., AIR INJECTION SOLENOID 1
7 61104428000 COLLAR, FR. FENDER 2
8 92101060220A BOLT, HEX., 6X22 2
