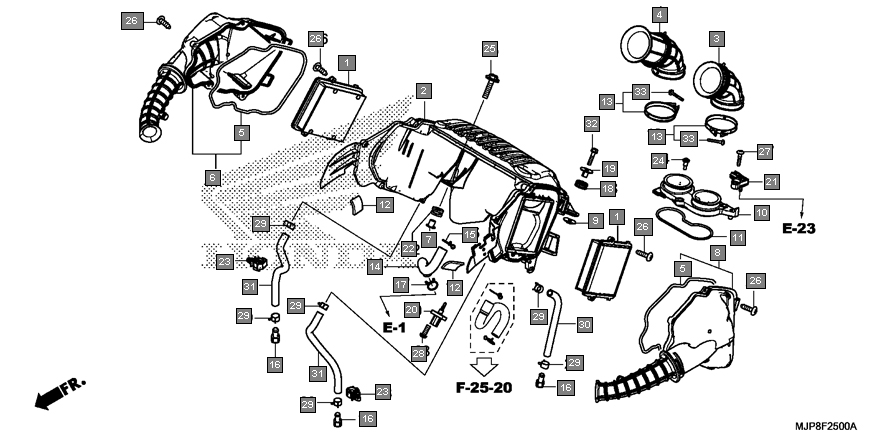

Motorcycles Africa Twin CRF1000DH Frame Air cleaner
Ref.No. Part No. Description Oty
1 17210MJPG50 ELEMENT COMP., AIR CLEANER 2
2 17215MJPG50 CASE COMP. 1
3 17226MJPG50 TUBE, L. AIR CLEANER CONNECTING 1
4 17227MJPG50 TUBE, R. AIR CLEANER CONNECTING 1
5 17229MJPG50 SEAL, LID 2
6 17234MJPG50 LID SUB ASSY., R. AIR CLEANER 1
7 17239MJPG50 COLLAR, AIR CLEANER MOUNTING 1
8 17244MJPG50 LID SUB ASSY., L. AIR CLEANER 1
9 17245MJPG50 COLLAR, AIR CLEANER MOUNTING 2
10 17250MJPG50 PLATE, FUNNEL SETTING 1
11 17252MJPG50 SEAL, SET PLATE 1
12 17256MJPG50 RUBBER, AIR CLEANER CASE 2
13 17257MJPG50 BAND, CONNECTING TUBE 2
14 17265MJPG50 TUBE, BREATHER 1
15 17369KB4670 CLIP, BREATHER TUBE 1
16 17370419700 PLUG, BREATHER TUBE 3
17 17724MJPG50 CLIP, TUBE 1
18 18422KR3870 RUBBER A, MUFFLER MOUNTING 2
19 19052MB0000 COLLAR, RADIATOR MOUNTING 2
20 37880KWWC01 SENSOR ASSY., AIR TEMP 1
21 46401TM8A01 SENSOR A, MASTER POWER PRESSURE 1
22 83545KCJ690 RUBBER, SIDE COVER 1
23 90652MGSD31 CLIP 2
24 91508MM5000 SCREW, PAN, 5MM 3
25 934040602807 BOLT-WASHER, 6X28 1
26 9390325480 SCREW, TAPPING, 5X20 12
27 9390325510 SCREW, TAPPING, 5X25 1
28 93913255J0 SCREW, TAPPING, 5X20 2
29 950024120000 CLAMP, TUBE(D12) 6
30 950032301660 TUBE, VINYL, 8X12X160 (95003-23001-60M) 1
31 950032302060 TUBE, VINYL, 8X12X200 (95003-23001-60M) 2
32 957010602808 BOLT, FLANGE, 6X28 2
33 90140KAE000 SCREW, PAN, 4X28 2
