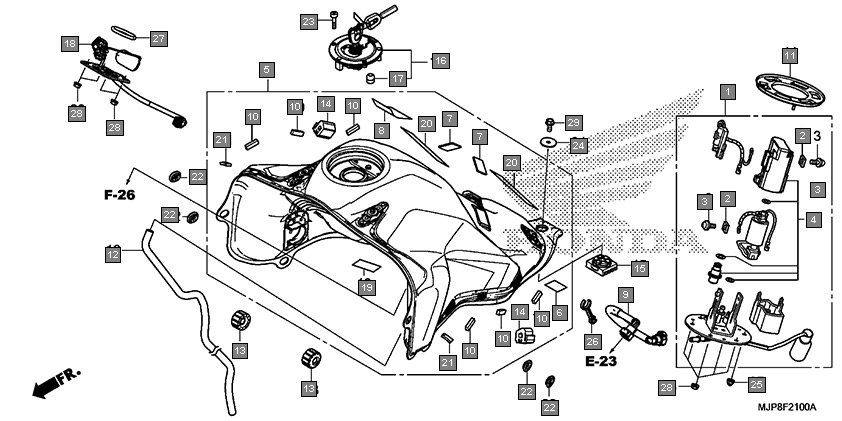

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16700MJPG52 | PUMP UNIT, FUEL | 1 |
| 2 | 16711MGSD31 | STOPPER | 2 |
| 3 | 16712MGSD31 | SCREW, 4X6.6 | 2 |
| 4 | 16730MKAD82 | FILTER ASSY., FUEL | 1 |
| 5 | 17500MJPF50ZA | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
| 6 | 17503MBTD50 | FILM, PROTECTOR | 1 |
| 7 | 17515KFB840 | RUBBER, TANK GUARD | 2 |
| 8 | 17515MEG300 | TAPE, TANK PROTECTOR | 1 |
| 9 | 17526MJPG51 | HOSE COMP., FUEL FEED | 1 |
| 10 | 17541MJPG50 | FASTENER, DUAL LOCK(8X25) | 6 |
| 11 | 17574MGSD30 | PACKING, BASE | 1 |
| 12 | 17590MJPG50 | TUBE, FUEL TANK DRAIN | 1 |
| 13 | 17611KE8000 | CUSHION, FUEL TANK FR. | 2 |
| 14 | 17611MJPG50 | CUSHION, FUEL TANK | 2 |
| 15 | 17613KFB010 | CUSHION, FUEL TANK RR. | 1 |
| 16 | 17620MJED02 | CAP COMP., FUEL FILLER | 1 |
| 17 | 17621MGPD61 | SEAL, BREATHER | 1 |
| 18 | 37800MJPG51 | FUEL UNIT | 1 |
| 19 | 64382MM5300 | TAPE, COVER | 1 |
| 20 | 77281MFLD20 | TAPE, PROTECTION | 2 |
| 21 | 80102MJSA90 | RUBBER, RR. FENDER | 2 |
| 22 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 4 |
| 23 | 90110MGPD60 | BOLT, SOCKET, 4X24(SUS) | 3 |
| 24 | 90136428870 | WASHER, TANK SETTING | 1 |
| 25 | 90201415000 | NUT, CAP, 6MM | 1 |
| 26 | 90650MJPG50 | CLAMP | 1 |
| 27 | 91305KEH601 | O-RING, 39.5X5 | 1 |
| 28 | 9405006000 | NUT, FLANGE, 6MM | 9 |
| 29 | 957010601408 | BOLT, FLANGE, 6X14 | 1 |
