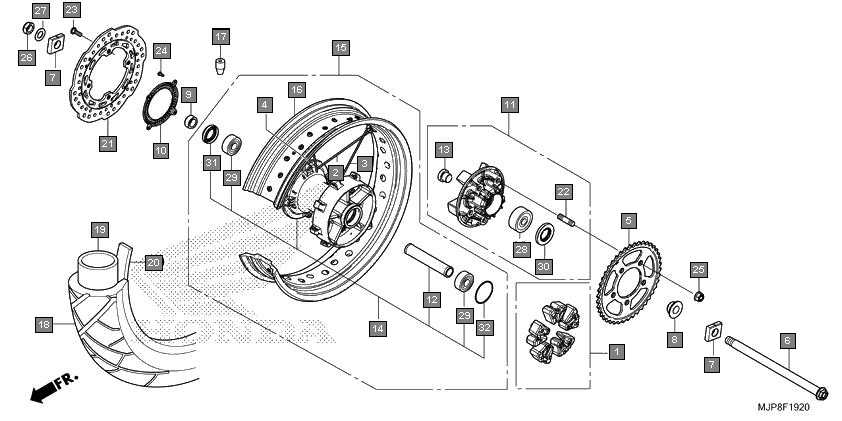

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410MBB000 | DAMPER SET, WHEEL | 1 |
| 2 | 06420MJPG51 | SPOKE SET A, RR. (R. OUTSIDE) | 8 |
| 3 | 06421MJPG51 | SPOKE SET B, RR. (L. SIDE) | 16 |
| 4 | 06422MJPG51 | SPOKE SET C, RR. (R. INSIDE) | 8 |
| 5 | 41201MJPG51 | SPROCKET, FINAL DRIVEN(42T) | 1 |
| 6 | 42301MJPG50 | AXLE, RR. WHEEL | 1 |
| 7 | 42305MJPG50 | COLLAR, RR. AXLE | 2 |
| 8 | 42311MJPG50 | COLLAR, RR. WHEEL SIDE | 1 |
| 9 | 42312MGSD30 | COLLAR, RR. BRAKE SIDE | 1 |
| 10 | 42515MJPG60 | RING, RR. PULSER | 1 |
| 11 | 42615MJPG51 | FLANGE SUB ASSY., FINAL DRIVEN | 1 |
| 12 | 42620MJPG50 | COLLAR, RR. AXLE DISTANCE | 1 |
| 13 | 42625MJPG50 | COLLAR B, RR. WHEEL DISTANCE | 1 |
| 14 | 42635MJPG60 | HUB SUB ASSY., RR. | 1 |
| 15 | 42650MJPG61 | WHEEL SUB ASSY., RR. | 1 |
| 16 | 42701MJPG61 | RIM, RR. WHEEL(18X4.00) | 1 |
| 17 | 42704MEG003 | WEIGHT, BALANCE(15G) | 0 |
| 18 | 42705MEG003 | WEIGHT, BALANCE(20G) | 0 |
| 19 | 42711MJPG51 | TIRE, RR.(DUNLOP) (150/70R18 M/C 70H) | 1 |
| 20 | 42712MGCN21 | TUBE, TIRE(DUNLOP) | 1 |
| 21 | 42713MGCN21 | FLAP, TIRE(DUNLOP) | 1 |
| 22 | 43251MJPG51 | DISK, RR. BRAKE(YUTAKA) | 1 |
| 23 | 90102MAS000 | BOLT, STUD, 12X25 | 5 |
| 24 | 90105MBB000 | BOLT, BRAKE DISK, 8X24 | 4 |
| 25 | 90131KPB751 | BOLT, TORX, 5X10 | 4 |
| 26 | 90306KF0003 | NUT, FLANGE, 12MM(FUSERASHI) | 5 |
| 27 | 90306MCSG01 | NUT, U, 18MM | 1 |
| 28 | 90401KZ4890 | WASHER, 18X32X2 | 1 |
| 29 | 91051MAS003 | BEARING, RADIAL BALL, 6322 | 1 |
| 30 | 91053MGSD31 | BEARING, RADIAL BALL(6204)(UU) | 2 |
| 31 | 91252MAS003 | DUST SEAL, 30X56X7.5 | 1 |
| 32 | 91253MAE003 | DUST SEAL, 30X47X7.5 | 1 |
| 33 | 91351MGSD30 | O-RING, 55X2 | 1 |
