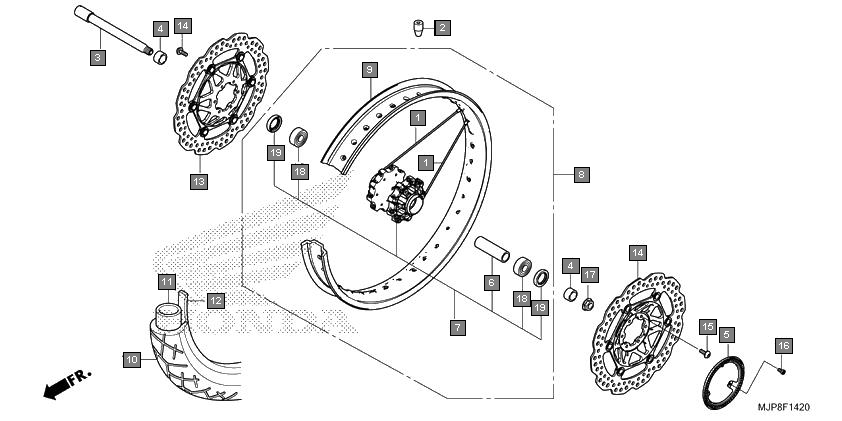

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06440MJPG51 | SPOKE SET, FR. | 36 |
2 | 42704MEG003 | WEIGHT, BALANCE(15G) | 0 |
3 | 42705MEG003 | WEIGHT, BALANCE(20G) | 0 |
4 | 44301MJPG50 | AXLE, FR. WHEEL | 1 |
5 | 44311MJPG50 | COLLAR, FR. WHEEL SIDE | 2 |
6 | 44515MJPG60 | RING, FR. PULSER | 1 |
7 | 44620MJPG50 | COLLAR, FR. AXLE DISTANCE | 1 |
8 | 44635MJPG50 | HUB SUB ASSY., FR. | 1 |
9 | 44650MJPG51 | WHEEL SUB ASSY., FR. | 1 |
10 | 44701MJPG61 | RIM, FR. WHEEL(21X2.15) | 1 |
11 | 44711MJPG51 | TIRE, FR.(DUNLOP) (90/90-21 M/C 54H) | 1 |
12 | 44712400004 | TUBE, TIRE(DUNLOP) | 1 |
13 | 44713KS6641 | FLAP, TIRE(DUNLOP) | 1 |
14 | 45120MJPG51 | DISK COMP., R. FR. BRAKE | 1 |
15 | 45220MJPG61 | DISK COMP., L. FR. BRAKE | 1 |
16 | 90106MBB000 | BOLT, DISK, 6X17 | 12 |
17 | 90131KPB751 | BOLT, TORX, 5X10 | 3 |
18 | 90304MJPG50 | NUT, FR. AXLE | 1 |
19 | 91009GE0004 | BEARING, RADIAL BALL, 6004UU (NTN) | 2 |
20 | 91257MAY003 | DUST SEAL, 28X42X8(NOK) | 2 |
