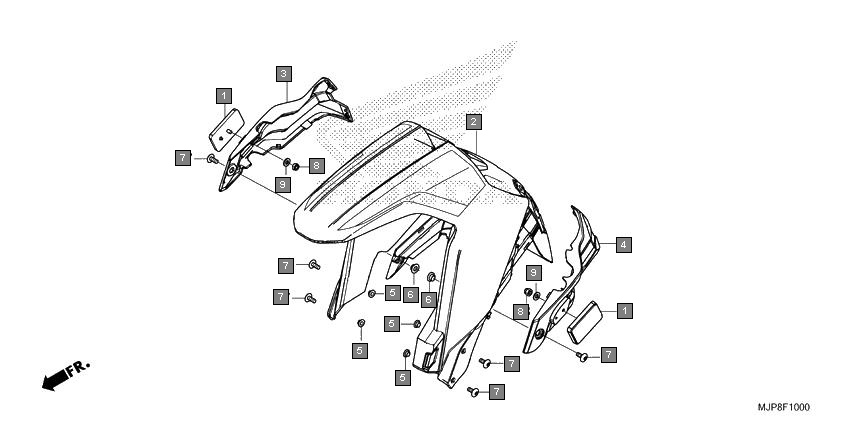

Motorcycles Africa Twin CRF1000DH Frame Front fender
Ref.No. Part No. Description Oty
1 33741MCWD01 REFLECTOR, FR. REFLEX 2
2 61000MJPF50ZA FENDER SET, FR.(WL) *TYPE1* 1
3 61101MJPG50 COVER, R. FR. FENDER 1
4 61102MJPG50 COVER, L. FR. FENDER 1
5 61105MJPG50 COLLAR, FR. FENDER 4
6 80118MFJD00 COLLAR, FENDER 2
7 90117KPM000 SCREW, PAN, 6X14 6
8 90302435761 NUT, HEX., 5MM 2
9 90401ZVA000 WASHER, 6MM 2
