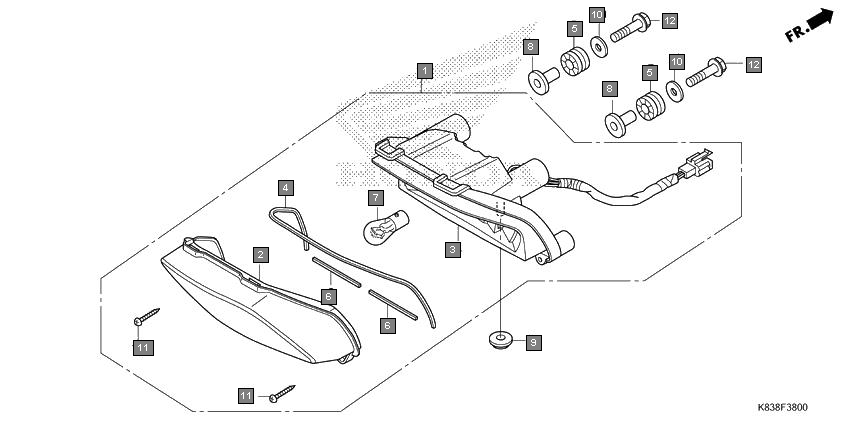

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33701K83D01 | TAILLIGHT UNIT(12V 21/5W) | 1 |
2 | 33703K23901 | LENS COMP., TAILLIGHT | 1 |
3 | 33704K83D01 | BASE COMP., TAILLIGHT | 1 |
4 | 33705K23901 | PACKING, LENS | 1 |
5 | 64615KR1860 | RUBBER, LOWER COWL MOUNTING | 2 |
6 | 33707K23901 | PACKING, LENS | 2 |
7 | 34907KVN901 | BULB, TAIL & STOP LIGHT (12V 21/5W) | 1 |
8 | 90310KWS900 | COLLAR, FR. COWL | 2 |
9 | 83601MN5000 | GROMMET, SIDE COVER | 1 |
10 | 90401KTJ900 | WASHER, 6.3X22X1.2 | 2 |
11 | 9390124380 | SCREW, TAPPING, 4X12 | 2 |
12 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
