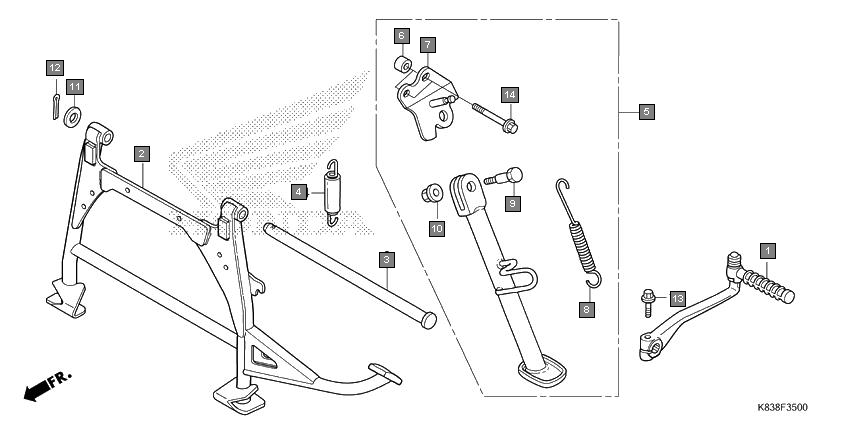

Scooters Cliq NVB110H Frame Kick starter arm/stand
Ref.No. Part No. Description Oty
1 50500KZKD00 STAND COMP., MAIN 1
2 50503GCC000 SHAFT, MAIN STAND 1
3 50505GCC000 SPRING ASSY., MAIN STAND 1
4 50560K83D00 STAND SET, SIDE 1
5 50532K74N00 COLLAR, SIDE STAND 2
6 50535KWPD00 BRACKET, SIDE STAND 1
7 50536KPL900 SPRING, SIDE STAND 1
8 90107GN1010 SCREW, SIDE STAND PIVOT 1
9 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
10 9410212000 WASHER, PLAIN, 12MM 1
11 9420125250 PIN, SPLIT, 2.5X25 1
12 957010802507 BOLT, FLANGE, 8X25 1
13 958011007507 BOLT, FLANGE, 10X75 2
14 28300K32700 ARM ASSY., KICK STARTER 1
