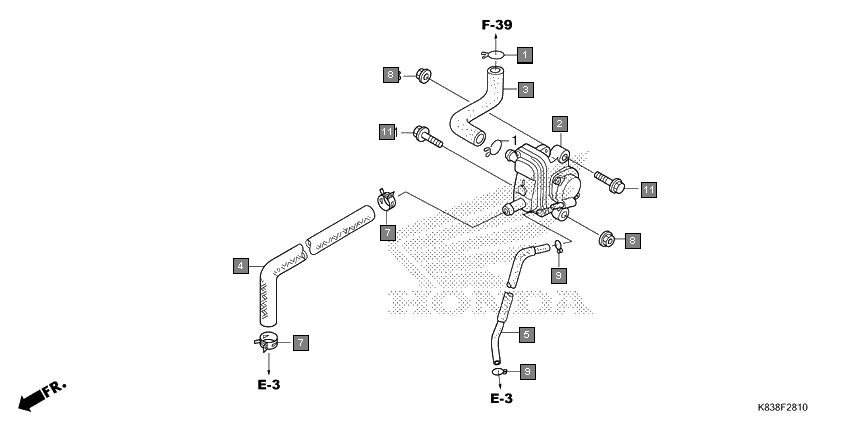

Scooters Cliq NVB110H Frame Air suction valve
Ref.No. Part No. Description Oty
1 17316611000 CLIP, BREATHER TUBE 2
2 18600KWP901 VALVE ASSY., AIR SUCTION 1
3 18651KPL840 TUBE, AIR SUCTION VALVE 1
4 18652KZK900 HOSE, AIR SUCTION VALVE 1
5 18653KWP900 TUBE, AIR SUCTION VALVE 1
6 90682KWPF00 CLAMP, CANISTER HOSE 2
7 9405006000 NUT, FLANGE, 6MM 2
8 90651KWPF00 CLIP, TUBE(B7) 2
9 960010602500 BOLT, FLANGE, 6X25 2
