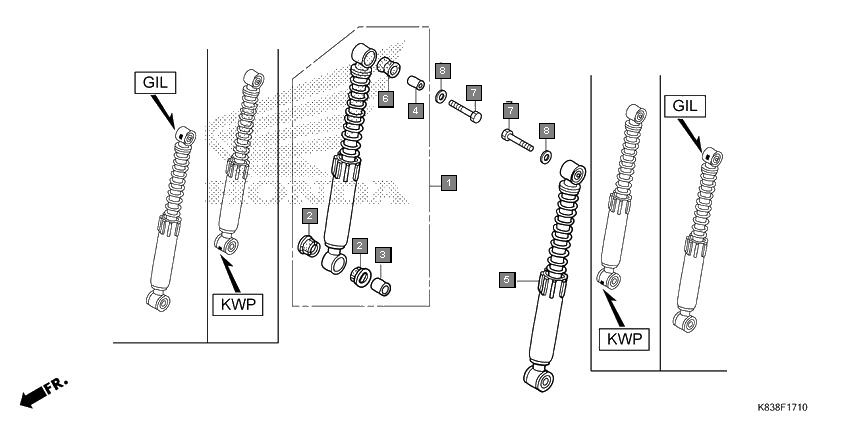

Scooters Cliq NVB110H Frame Front cushion
Ref.No. Part No. Description Oty
1 51400KWP901 CUSHION ASSY., R. FR.(SHOWA)(KWP) 1
2 51400KWPG01 CUSHION ASSY., R. FR.(GABRIEL)(GIL) 1
3 51413KPL902 BUSH, FR. CUSHION UNDER(GABRIEL) 4
4 51413GC8003 BUSH, FR. CUSHION UNDER(SHOWA)(KWP) 4
5 51486KPL903 COLLAR, RUBBER BUSH(GABRIEL)(GIL) 2
6 51486GC8003 COLLAR, RUBBER BUSH(SHOWA)(KWP) 2
7 52486KPL903 COLLAR, RUBBER BUSH(GABRIEL)(GIL) 2
8 51486KRP981 COLLAR, CUSHION RUBBER BUSH(SHOWA)(KWP) 2
9 51500KWPG01 CUSHION ASSY., L. FR.(GABRIEL)(GIL) 1
10 51500KWP901 CUSHION ASSY., L. FR.(SHOWA) 1
11 52489KPL902 BUSH, RUBBER(GABRIEL)(GIL) 2
12 52489331003 RUBBER A, JOINT(SHOWA)(KWP) 2
13 90121KPL900 BOLT, HEX., 8X32 2
14 90443KPL900 WASHER, SPECIAL, 8MM 2
