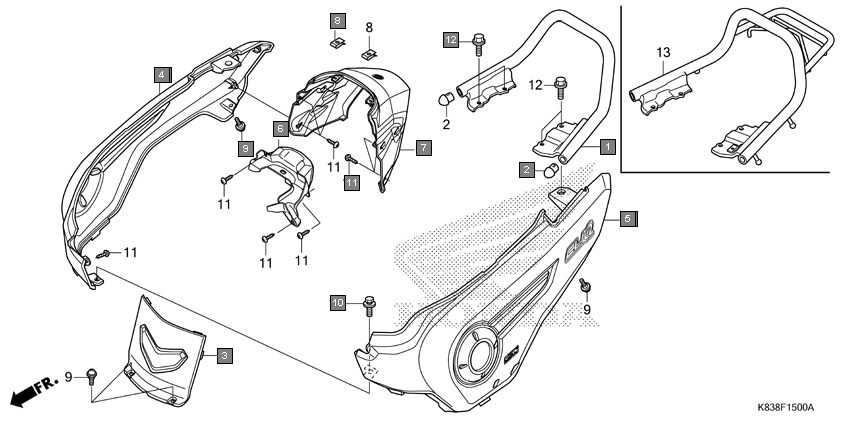

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 50400K83D00 | GRIP COMP., RR. | 1 |
| 2 | 50415K83D00 | CAP, RR. GRIP END | 2 |
| 3 | 80151K83D00ZA | COVER, CENTER *NH1* BLACK | 1 |
| 4 | 83100K83D00ZD | COVER SET, R. BODY(WL) *TYPE1* | 1 |
| 5 | 83100K83D00ZC | COVER SET, R. BODY(WL) *TYPE2* | 1 |
| 6 | 83200K83D00ZD | COVER SET, L. BODY(WL) *TYPE1* | 1 |
| 7 | 83200K83D00ZC | COVER SET, L. BODY(WL) *TYPE2* | 1 |
| 8 | 83640K83D00 | COVER, SEAT LOCK CABLE | 1 |
| 9 | 83750K83D00ZA | COVER, RR. CENTER *NH1* BLACK | 1 |
| 10 | 90344KTE910 | NUT, CLIP, 4MM | 2 |
| 11 | 91509GE2760 | SCREW, PAN, 5X11.5 | 4 |
| 12 | 934040601207 | BOLT-WASHER, 6X12 | 1 |
| 13 | 9390334380 | SCREW, TAPPING, 4X12 | 10 |
| 14 | 957010801600 | BOLT, FLANGE, 8X16 | 4 |
| 15 | 83100K83D00ZA | COVER SET, R. BODY(WL) | 1 |
| 16 | 83100K83D00ZB | COVER SET, R. BODY(WL) | 1 |
| 17 | 83200K83D00ZA | COVER SET, L. BODY(WL) | 1 |
| 18 | 83200K83D00ZB | COVER SET, L. BODY(WL) | 1 |
| 19 | 83100K83D20ZA | COVER SET, R. BODY(WL) *TYPE4*...................... | 1 |
| 20 | 83100K83D20ZB | COVER SET, R. BODY(WL) *TYPE3*...................... | 1 |
| 21 | 83100K83D20ZC | COVER SET, R. BODY(WL) *TYPE2*...................... | 1 |
| 22 | 83100K83D20ZD | COVER SET, R. BODY(WL) *TYPE1*...................... | 1 |
| 23 | 83200K83D20ZA | COVER SET, L. BODY(WL) *TYPE4*...................... | 1 |
| 24 | 83200K83D20ZB | COVER SET, L. BODY(WL) *TYPE3*...................... | 1 |
| 25 | 83200K83D20ZC | COVER SET, L. BODY(WL) *TYPE2*...................... | 1 |
| 26 | 83200K83D20ZD | COVER SET, L. BODY(WL) *TYPE1*........... | 1 |
