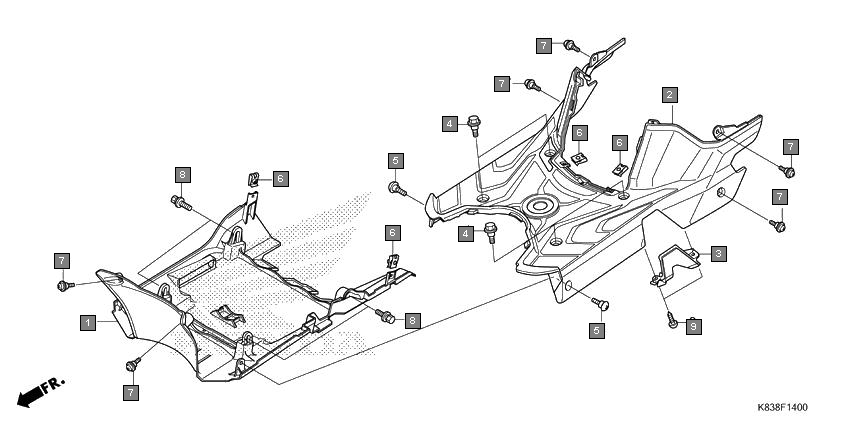

Scooters Cliq NVB110H Frame Floor step
Ref.No. Part No. Description Oty
1 50621K83D00 COVER, UNDER 1
2 64310K83D00ZA STEP, FLOOR *NH1* BLACK 1
3 64311K83D00ZA LID, FLOOR *NH1* BLACK 1
4 90111187000 BOLT, FLANGE, 6MM 4
5 90150MBG000 SCREW, PAN, 5X15 2
6 90320GC3000 NUT, SPRING, 5MM 4
7 91509GE2760 SCREW, PAN, 5X11.5 6
8 934040601608 BOLT-WASHER, 6X16 4
9 9390334380 SCREW, TAPPING, 4X12 2
