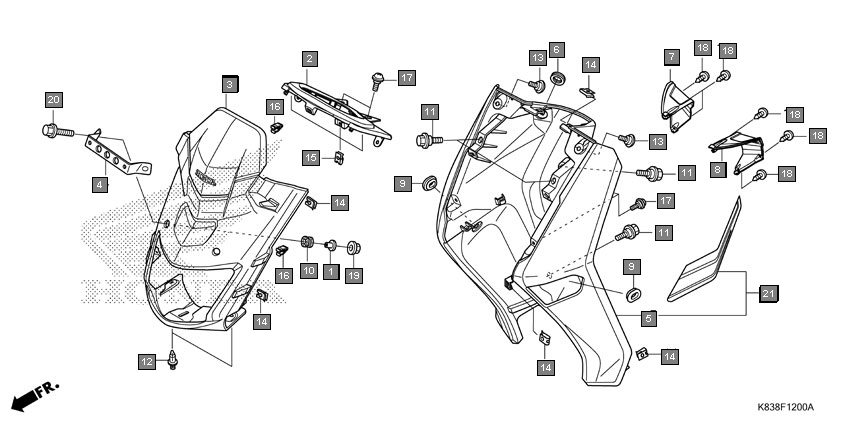

Scooters Cliq NVB110H Frame Front cover
Ref.No. Part No. Description Oty
1 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
2 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
3 61310K83D00ZA COVER, METER *NH1* BLACK 1
4 81130K83D20ZC SHIELD SET, LEG(WL) *TYPE2*...................... 1
5 64300K83D00ZA COVER SET, FR.(WL) *R232* PATRIOT RED 1
6 64300K83D00ZB COVER SET, FR.(WL)*PB400R* MOROCCAN BLUE R 1
7 64300K83D00ZC COVER SET, FR.(WL)*NH1* BLACK 1
8 64303K83D00 STAY, FR. NUMBER PLATE 1
9 81131K83D00ZB SHIELD, LEG*NH1* BLACK 1
10 81131K83D00ZA SHIELD, LEG *NH138* SHASTA WHITE 1
11 81131K83D00ZC SHIELD, LEG *NHB69R* ORCUS GRAY R 1
12 81132KZK900 RUBBER, KEY CYLINDER 1
13 81150K83D00ZC COVER, R. FR. WINKER *NHB69R* ORCUS GRAY R 1
14 81150K83D00ZA COVER, R. FR. WINKER *NH138* SHASTA WHITE 1
15 81150K83D00ZB COVER, R. FR. WINKER *NH1* BLACK 1
16 81160K83D00ZB COVER, L. FR. WINKER *NH1* BLACK 1
17 81160K83D00ZA COVER, L. FR. WINKER *NH138* SHASTA WHITE 1
18 81160K83D00ZC COVER, L. FR. WINKER *NHB69R* ORCUS GRAY R 1
19 83551GE2000 GROMMET, AIR CLEANER CASE 2
20 84703425000 RUBBER, TAILLIGHT MOUNTING 2
21 90111187000 BOLT, FLANGE, 6MM 4
22 90116SP0003 CLIP, BUMPER SEAL 2
23 90150MBG000 SCREW, PAN, 5X15 2
24 90320GC3000 NUT, SPRING, 5MM 10
25 90344KRP900 NUT, CLIP, 5MM 3
26 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 3
27 91509GE2760 SCREW, PAN, 5X11.5 4
28 9390325280 SCREW, TAPPING, 5X12 6
29 9405006080 NUT, FLANGE, 6MM 2
30 957010602507 BOLT, FLANGE, 6X25 2
31 81130K83D20ZA SHIELD SET, LEG(WL) *TYPE4*...................... 1
32 81130K83D20ZB SHIELD SET, LEG(WL) *TYPE3*...................... 1
33 81130K83D20ZD SHIELD SET, LEG(WL) *TYPE1*...................... 1
