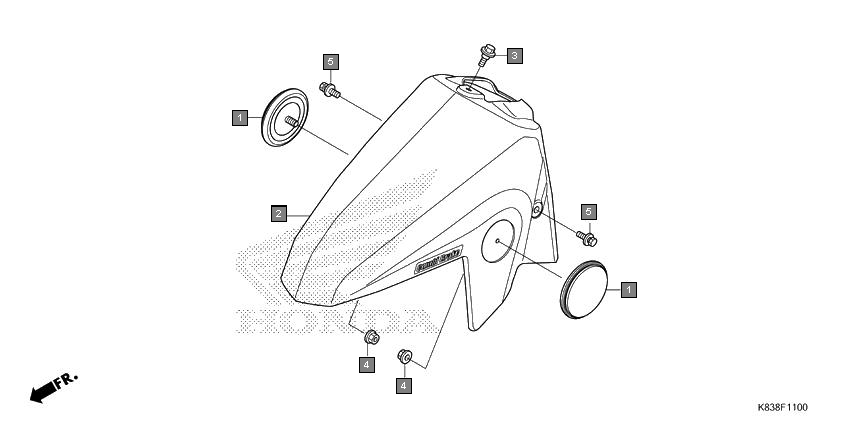

Scooters Cliq NVB110H Frame Front fender
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 61000K83D00ZB FENDER SET, FR.(WL) *PB400R* MOROCCAN BLUE R 1
3 61000K83D00ZA FENDER SET, FR.(WL) *R232* PATRIOT RED 1
4 61000K83D00ZC FENDER SET, FR.(WL) *NH1* BLACK 1
5 90111KPL900 BOLT, INNER COVER 1
6 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
7 934040601207 BOLT-WASHER, 6X12 2
