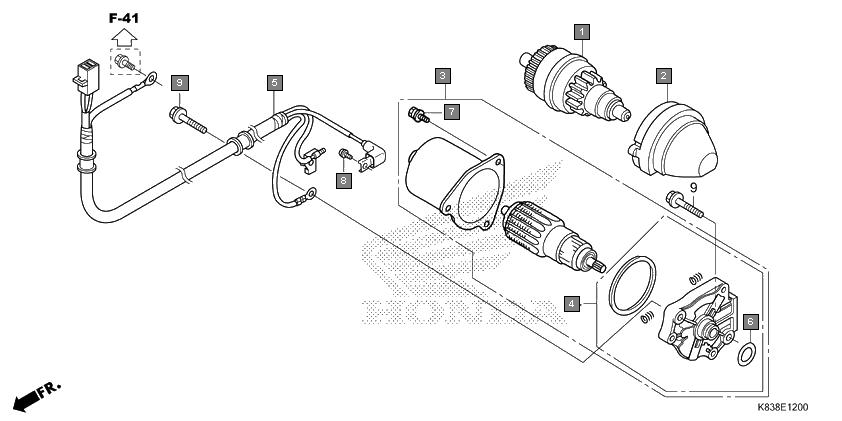

Scooters Cliq NVB110H Engine Starting motor
Ref.No. Part No. Description Oty
1 28120KWPD02 PINION ASSY., STARTER(14/40T) (LUCAS) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31210KWPG01 MOTOR UNIT, STARTING(LUCAS) 1
4 31214KWPG01 BRACKET COMP., FR. 1
5 32105K83D01 HARNESS COMP., STARTING MOTOR 1
6 91309KPL901 O-RING 1
7 934120501208 BOLT-WASHER, 5X12 3
8 938920400608 SCREW-WASHER, 4X6 1
9 960010603500 BOLT, FLANGE, 6X35 2
