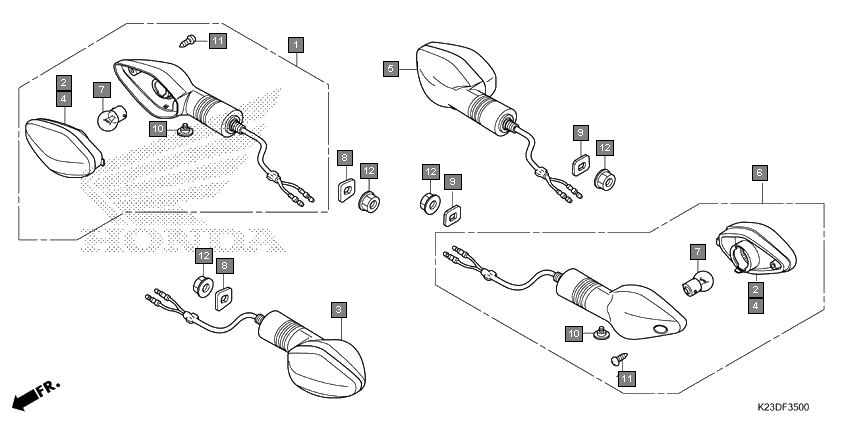

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33400K23901 | WINKER ASSY., R. FR.(12V 10W) | 1 |
2 | 33403K23901 | LENS COMP., R. (R. FR./L. RR.) | 2 |
3 | 33450K23A01 | WINKER ASSY., L. FR.(12V 10W) | 1 |
4 | 33453K23901 | LENS COMP., L. (L. FR./R. RR.) | 2 |
5 | 33600K23901 | WINKER ASSY., R. RR.(12V 10W) | 1 |
6 | 33650K23901 | WINKER ASSY., L. RR.(12V 10W) | 1 |
7 | 34904K23900 | BULB, WINKER LIGHT(R10W) | 4 |
8 | 61315K14900 | PLATE, FR. WINKER | 2 |
9 | 80103KWS900 | STAY, RR. WINKER | 2 |
10 | 90380MB2000 | SCREW, SPECIAL, 6X8 | 4 |
11 | 9390134380 | SCREW, TAPPING, 4X12 | 4 |
12 | 9405010000 | NUT, FLANGE, 10MM | 4 |
