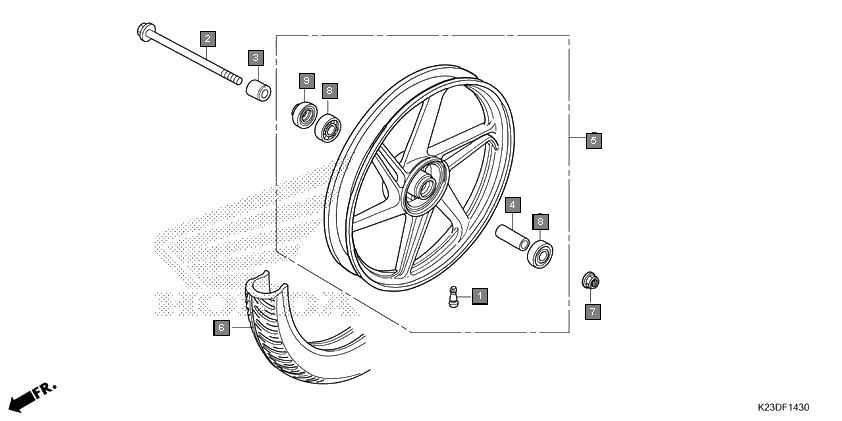

Motorcycles Dream Neo CB110CMH Frame Front wheel
Ref.No. Part No. Description Oty
1 42753K24G11 VALVE, RIM(ACCURA) 1
2 42753KWF901 VALVE, RIM(TRITON) 1
3 44301KPL900 AXLE, FR. WHEEL 1
4 44311KSP900 COLLAR, FR. WHEEL SIDE 1
5 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
6 44650K63D30ZA WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC 1
7 44711KRY971 TIRE, FR.(MRF) (80/100-18 M/C 47P) 1
8 44711KTE602 TIRE, FR.(TVS) (80/100-18 M/C 47P) 1
9 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
10 91053KWW642 BEARING, RADIAL BALL, 6301U (FAG) 2
11 91052KWWA81 BEARING, RADIAL BALL, 6301U (SKF) 2
12 91052K23903 BEARING, RADIAL BALL, 6301U (NEI) 2
13 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
