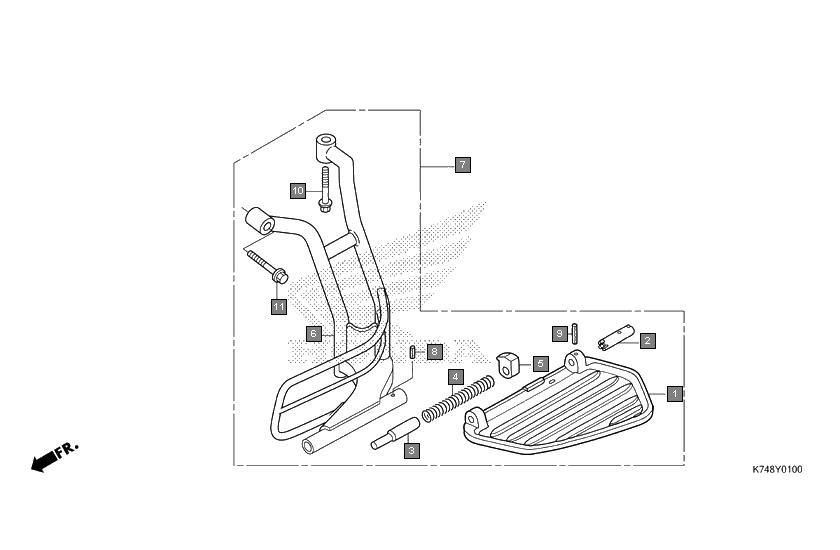

Scooters Navi NVA110H Frame Sari step set
Ref.No. Part No. Description Oty
1 83521KPL900 PLATE, SARI STEP 1
2 83522KPL900 PIN A, SARI STEP 1
3 83523KPL900 PIN B, SARI STEP 1
4 83524KPL900 SPRING, STEP RETURN 1
5 83526KPL900 STOPPER, STEP RUBBER 1
6 83540K74N00 STEP COMP., SARI 1
7 83560K74N00 STEP SET, SARI 1
8 9430530142 PIN, SPRING, 3X14 1
9 9430530282 PIN, SPRING, 3X28 1
10 957011006000 BOLT, FLANGE, 10X60 1
11 957011008000 BOLT, FLANGE, 10X80 1
