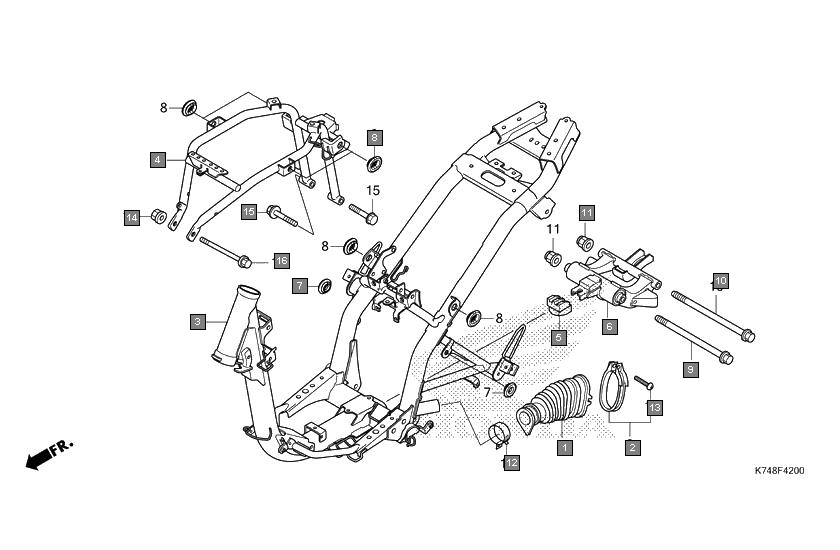

Scooters Navi NVA110H Frame Frame body
Ref.No. Part No. Description Oty
1 11345KWPG00 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 50100K74N00 BODY COMP., FRAME 1
4 50100K74N20 BODY COMP., FRAME 1
5 50160K74N20 STAY COMP., FUEL TANK 1
6 50160K74N00 STAY COMP., FUEL TANK 1
7 50352GW0730 RUBBER, LINK STOPPER 1
8 50355K74N00 LINK SUB ASSY., ENGINE HANGER 1
9 83551376000 GROMMET, SIDE COVER 2
10 83551GE2000 GROMMET, AIR CLEANER CASE 6
11 90105KJ9000 BOLT, FLANGE, 10X210 1
12 90106GCC000 BOLT, FLANGE, 10X238 1
13 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
14 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
15 91405KPL900 CLAMP, TUBE(D29) 1
16 93500040250G SCREW, PAN, 4X25 1
17 9405008000 NUT, FLANGE, 8MM 1
18 957010805000 BOLT, FLANGE, 8X50 2
19 957010807500 BOLT, FLANGE, 8X75 1
