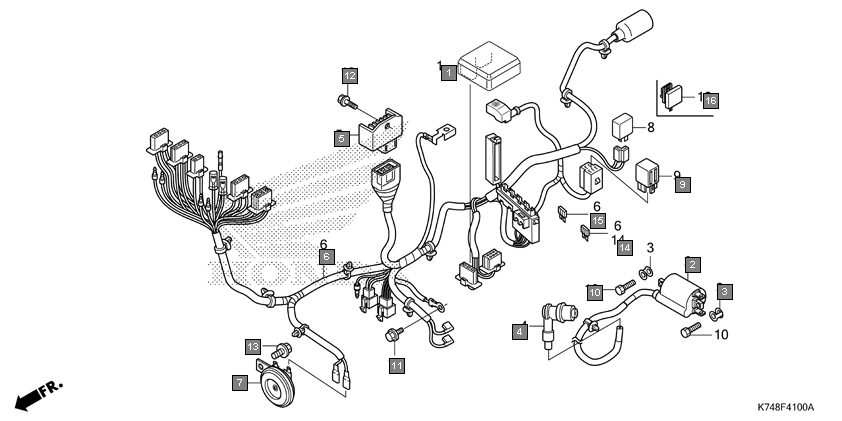

Scooters Navi NVA110H Frame Wire harness
Ref.No. Part No. Description Oty
1 30410K74N21 SPARK UNIT 1
2 30410K74N01 SPARK UNIT 1
3 30500K74N01 COIL ASSY., IGNITION 1
4 30520GFM900 SPACER, IGNITION COIL 2
5 30700KWPD01 CAP ASSY., NOISE SUPPRESSOR(MINDA) 1
6 31600KWPE02 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
7 32100K74N20 HARNESS, WIRE 1
8 32100K74N00 HARNESS, WIRE 1
9 38110KYJT01 HORN COMP.(HIGH) 1
10 38301K14962 RELAY COMP., WINKER (STAR ENGINEERS) 1
11 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
12 92101060204J BOLT, HEX., 6X20 2
13 92101060204J BOLT, HEX., 6X20 1
14 957010601208 BOLT, FLANGE, 6X12 1
15 957010601608 BOLT, FLANGE, 6X16 1
16 957010801208 BOLT, FLANGE, 8X12 1
17 9820030750 FUSE, BLADE(7.5A) 2
18 9820031000 FUSE, BLADE(10A) 2
