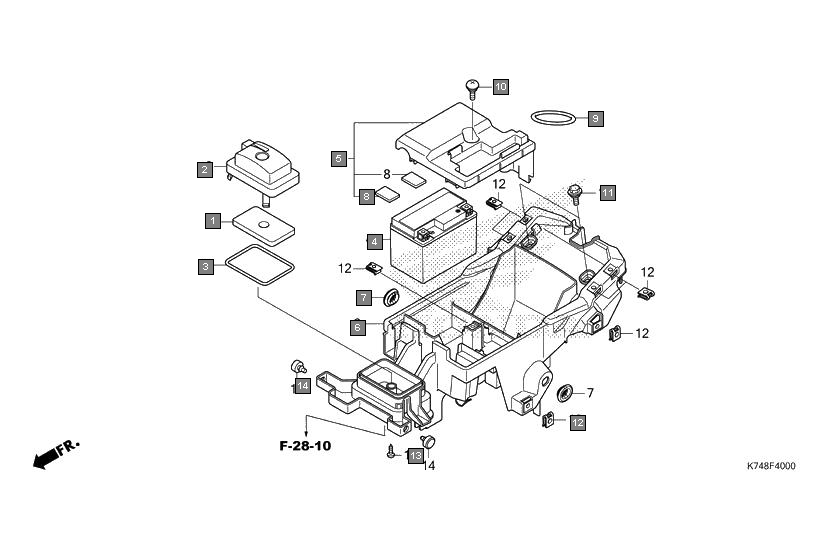

Scooters Navi NVA110H Frame Battery
Ref.No. Part No. Description Oty
1 18805KPL900 ELEMENT, SUB AIR CLEANER 1
2 18807KPL900 COVER, SUB AIR CLEANER 1
3 18812KPL900 SEAL, SUB AIR CLEANER 1
4 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
5 50341K74N00 COVER, BATTERY 1
6 50381K74N00 CASE, BATTERY 1
7 83551GE2000 GROMMET, AIR CLEANER CASE 2
8 83551K38900 RUBBER SPONGE, SIDE COVER 2
9 83606KWS901 BAND, TOOL 1
10 90104KT2000 SCREW, SPECIAL, 6X14 1
11 90111187000 BOLT, FLANGE, 6MM 2
12 90320747000 NUT, SPRING, 6MM 9
13 90320747000 NUT, SPRING, 6MM 1
14 9390325480 SCREW, TAPPING, 5X20 1
15 9501162000 RUBBER B, STAND STOPPER 2
16 9501162000 RUBBER B, STAND STOPPER 1
