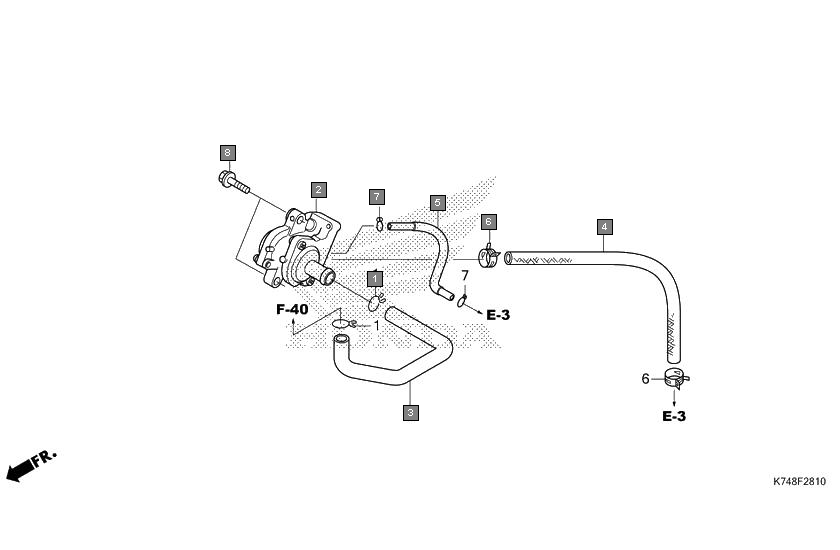

Scooters Navi NVA110H Frame Air suction valve
Ref.No. Part No. Description Oty
1 17316KWPE00 CLIP, BREATHER TUBE 2
2 17316611000 CLIP, BREATHER TUBE 2
3 18600KWP901 VALVE ASSY., AIR SUCTION 1
4 18651K74N00 TUBE, AIR SUCTION VALVE 1
5 18652K74N00 HOSE, AIR SUCTION VALVE 1
6 18653KWP900 TUBE, AIR SUCTION VALVE 1
7 90682KWPF00 CLAMP, CANISTER HOSE 2
8 90682SA0670 CLAMP, CANISTER HOSE 2
9 90651KWPF00 CLIP, TUBE(B7) 2
10 9500202070 CLIP, TUBE(B7) 2
11 957010602008 BOLT, FLANGE, 6X20 2
