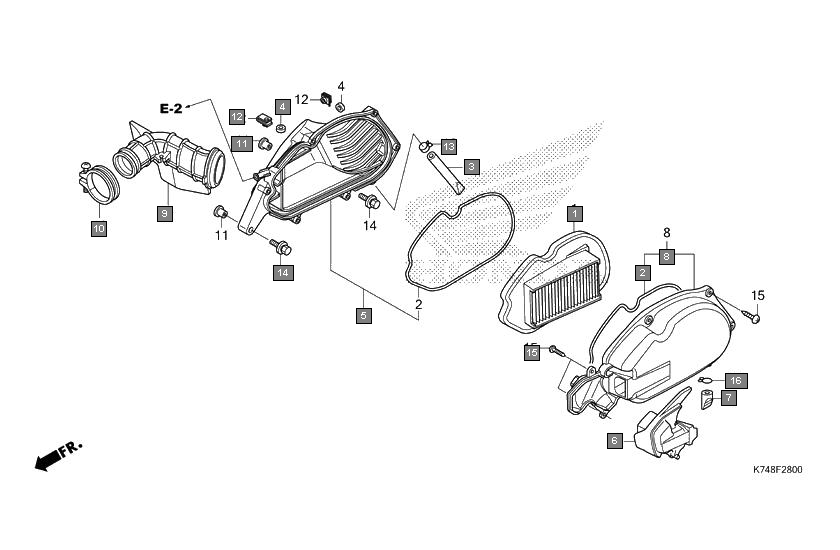

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17210KVTD00 | ELEMENT, AIR CLEANER | 1 |
| 2 | 17212GEE000 | SEAL, AIR CLEANER COVER | 2 |
| 3 | 17216KVTG00 | TUBE, DRAIN | 1 |
| 4 | 17216KVT940 | TUBE, DRAIN | 1 |
| 5 | 17223KVX600 | COLLAR, AIR CLEANER | 2 |
| 6 | 17225K74N20 | CASE SUB ASSY., AIR CLEANER | 1 |
| 7 | 17225K32900 | CASE SUB ASSY., AIR CLEANER | 1 |
| 8 | 17234K74N00 | COVER, AIR CLEANER DUCT | 1 |
| 9 | 17234K74N20 | COVER, AIR CLEANER DUCT | 1 |
| 10 | 17234KCC941 | TUBE, AIR CLEANER DRAIN | 1 |
| 11 | 17235KVTG00 | COVER SUB ASSY., AIR CLEANER | 1 |
| 12 | 17235KVTD00 | COVER SUB ASSY., AIR CLEANER | 1 |
| 13 | 17253KVTG00 | TUBE, AIR CLEANER CONNECTING | 1 |
| 14 | 17253KWP900 | TUBE, AIR CLEANER CONNECTING | 1 |
| 15 | 17254K74N00 | BAND, AIR CLEANER CONNECTING TUBE(40) | 1 |
| 16 | 17254KWPD00 | BAND, AIR CLEANER CONNECTINGTUBE(40) | 1 |
| 17 | 50731KV3770 | COLLAR, PILLION STEP SETTING | 2 |
| 18 | 90311MT3000 | NUT, CLIP, 6MM | 2 |
| 19 | 90602KPL900 | CLAMP, TUBE(D12.0) | 1 |
| 20 | 934040604007 | BOLT-WASHER, 6X40 | 2 |
| 21 | 9390325480 | SCREW, TAPPING, 5X20 | 8 |
| 22 | 90653KWPF00 | CLIP, TUBE(B12.5) | 1 |
| 23 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
