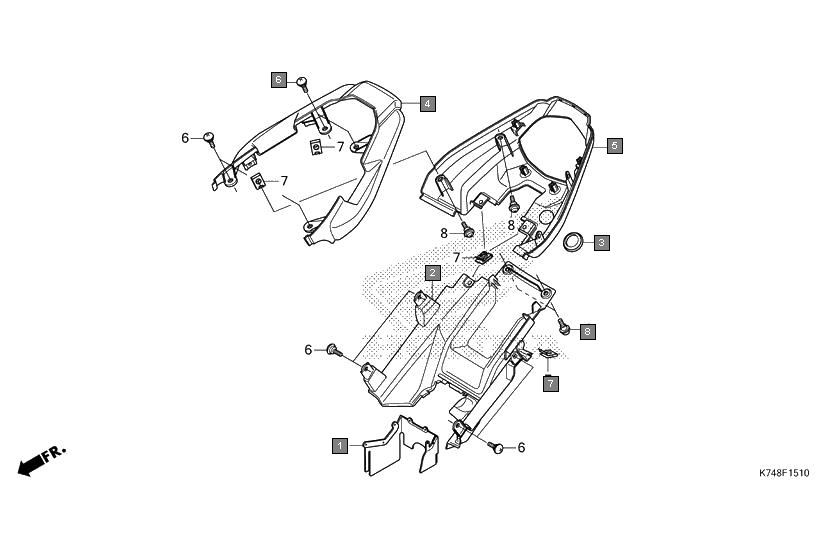

Scooters Navi NVA110H Frame Rear cowl
Ref.No. Part No. Description Oty
1 80104K74N00 PLATE, FRAME BODY SPLASH GUARD 1
2 80106K74N00 COVER, RR. COWL 1
3 82871671000 GROMMET, DRAIN HOLE, 25MM 1
4 83710K74N00 COWL, RR. UPPER 1
5 83800K74N00ZA COWL SET, RR. LOWER(WL) *TYPE1* 1
6 90104KT2000 SCREW, SPECIAL, 6X14 8
7 90320GC3000 NUT, SPRING, 5MM 8
8 91509GE2760 SCREW, PAN, 5X11.5 6
