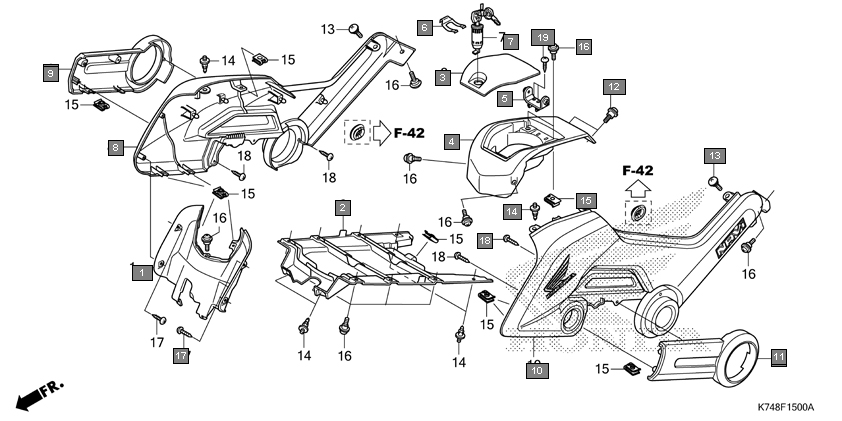

Scooters Navi NVA110H Frame Tank cover/side cover
Ref.No. Part No. Description Oty
1 64410K74N00 COVER, TANK CENTER 1
2 64420K74N00 COVER, FUEL TANK LOWER 1
3 64430K74N00 LID, TANK 1
4 64440K74N00 COVER, TANK 1
5 64450K74N00 HINGE, TANK 1
6 75581GN8920 SPRING, LOCK KEY SETTING 1
7 77239K74N01 KEY, FUEL LOCK 1
8 77239K74N00 KEY, FUEL LOCK 1
9 83500K74N00ZC COVER SET, R. SIDE(WL)*TYPE5* 1
10 83500K74N00ZA COVER SET, R. SIDE(WL) *TYPE7* 1
11 83500K74N00ZF COVER SET, R. SIDE(WL)*TYPE2* 1
12 83500K74N00ZB COVER SET, R. SIDE(WL)*TYPE6* 1
13 83500K74N00ZG COVER SET, R. SIDE(WL)*TYPE1* 1
14 83500K74N00ZE COVER SET, R. SIDE(WL)*TYPE3* 1
15 83500K74N00ZD COVER SET, R. SIDE(WL)*TYPE4* 1
16 83520K74N00ZA COVER, R. SIDE LOWER *NHB60M* MAT SELENE SILVER METALLIC 1
17 83600K74N00ZG COVER SET, L. SIDE(WL) *TYPE1* 1
18 83600K74N00ZB COVER SET, L. SIDE(WL) *TYPE6* 1
19 83600K74N00ZC COVER SET, L. SIDE(WL) *TYPE5* 1
20 83600K74N00ZA COVER SET, L. SIDE(WL) *TYPE7* 1
21 83600K74N00ZE COVER SET, L. SIDE(WL) *TYPE3* 1
22 83600K74N00ZF COVER SET, L. SIDE(WL) *TYPE2* 1
23 83600K74N00ZD COVER SET, L. SIDE(WL) *TYPE4* 1
24 83620K74N00ZA COVER, L. SIDE LOWER *NHB60M* MAT SELENE SILVER METALLIC 1
25 90102GB2720 SCREW, PAN, 5X16 2
26 90104KT2000 SCREW, SPECIAL, 6X14 2
27 90116SP0003 CLIP, BUMPER SEAL 6
28 90320GC3000 NUT, SPRING, 5MM 9
29 91509GE2760 SCREW, PAN, 5X11.5 13
30 9390324480 SCREW, TAPPING, 4X16 4
31 9390334380 SCREW, TAPPING, 4X12 10
32 9390324280 SCREW, TAPPING, 4X10 2
33 90104KT2000 SCREW, SPECIAL, 6X14 1
34 90116SP0003 CLIP, BUMPER SEAL 1
35 9390334380 SCREW, TAPPING, 4X12 1
