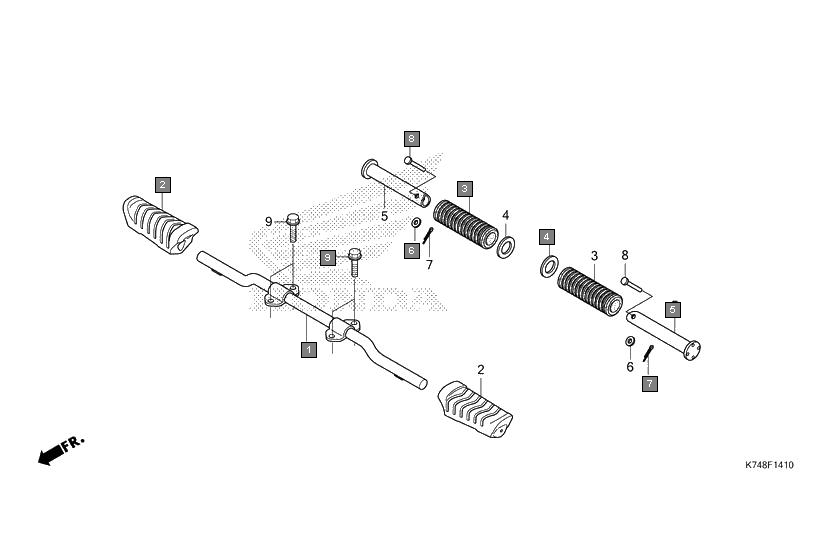

Scooters Navi NVA110H Frame Main step/pillion step
Ref.No. Part No. Description Oty
1 50610K74N00 BAR COMP., STEP 1
2 50661K14960 RUBBER, MAIN STEP 2
3 50710KTE910 RUBBER, PILLION STEP 2
4 50712405000 WASHER, PILLION STEP 2
5 50712405000 WASHER, PILLION STEP 1
6 50715405000 BAR, PILLION STEP 2
7 9410106000 WASHER, PLAIN, 6MM 2
8 9420116150 PIN, SPLIT, 1.6X15 2
9 9501581000 PIN A, PILLION STEP 2
10 957010801600 BOLT, FLANGE, 8X16 4
