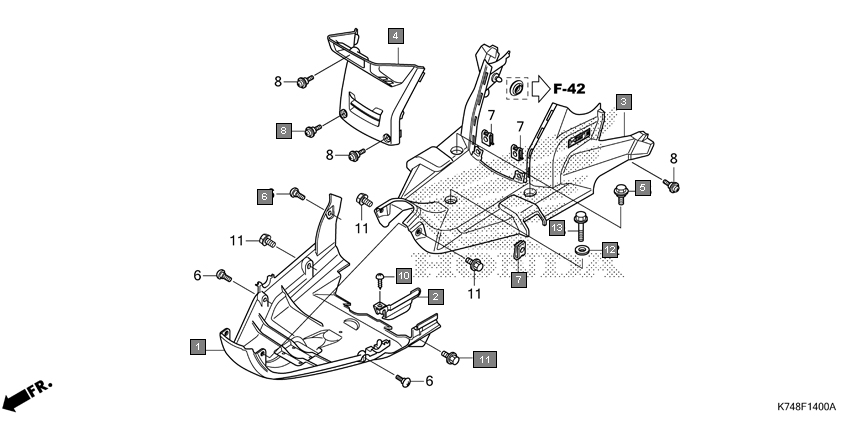

Scooters Navi NVA110H Frame Floor
Ref.No. Part No. Description Oty
1 50621K74N00 FLOOR, LOWER 1
2 50622K74N00 LID, FLOOR LOWER 1
3 64300K74N20ZA FLOOR SET(WL) *TYPE1* 1
4 80151K74N00 COVER, CENTER 1
5 90111187000 BOLT, FLANGE, 6MM 2
6 90150MBG000 SCREW, PAN, 5X15 3
7 90320GC3000 NUT, SPRING, 5MM 4
8 91509GE2760 SCREW, PAN, 5X11.5 4
9 9390324320 SCREW, TAPPING, 4X12 1
10 957010601207 BOLT, FLANGE, 6X12 4
11 9410306700 WASHER, PLAIN, 6MM 1
12 957010602507 BOLT, FLANGE, 6X25 1
