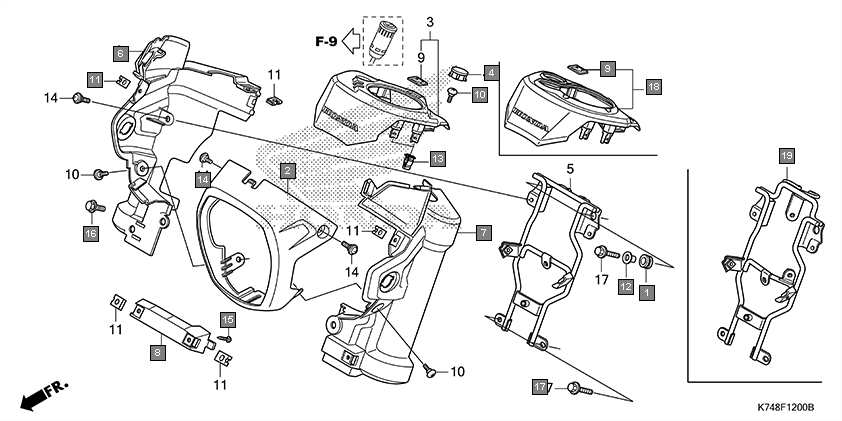

Scooters Navi NVA110H Frame Headlight cover/front fork cover
Ref.No. Part No. Description Oty
1 17622GB7900 RUBBER, CUSHION 2
2 61300K74N00ZA COVER, HEADLIGHT *NHB60M* MAT SELENE SILVER METALLIC 1
3 61305K74N00ZA COVER SET, METER(WL) *TYPE1* 1
4 61313K14900 PLUG, BLIND 1
5 61315K74N00 STAY, FR. COWL 1
6 61330K74N00 COVER, R. FORK 1
7 61340K74N00 COVER, L. FORK 1
8 64315K74N00 STAY, FR. NUMBER PLATE 1
9 86150KWS601 EMBLEM, PRODUCT(SJS) 1
10 90150MBG000 SCREW, PAN, 5X15 3
11 90320GC3000 NUT, SPRING, 5MM 5
12 90501KC2750 WASHER, REGULATOR SETTING 2
13 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 4
14 91509GE2760 SCREW, PAN, 5X11.5 4
15 9390324320 SCREW, TAPPING, 4X12 1
16 957010601207 BOLT, FLANGE, 6X12 1
17 960010602000 BOLT, FLANGE, 6X20 4
