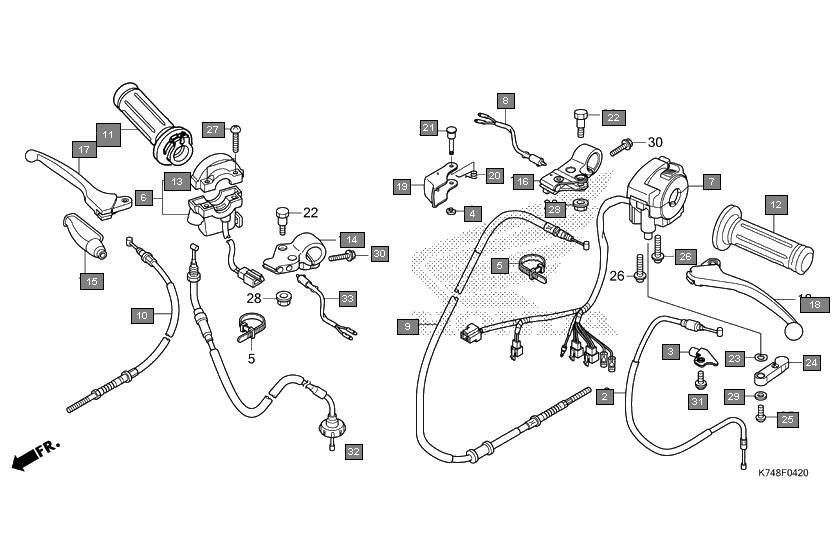

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17950K74N00 | CABLE COMP., CHOKE | 1 |
| 2 | 17962K74N00 | STOPPER, CABLE | 1 |
| 3 | 30158GW3980 | E-RING, 3MM | 1 |
| 4 | 32161KSP920 | BAND B1, WIRE | 2 |
| 5 | 35150K74N01 | SWITCH ASSY., START | 1 |
| 6 | 35200K74N21 | SWITCH ASSY., WINKER | 1 |
| 7 | 35200K74N01 | SWITCH ASSY., WINKER | 1 |
| 8 | 35345K74N21 | SWITCH ASSY., RR. STOP | 1 |
| 9 | 35340KZAW01 | SWITCH ASSY., FR. STOP | 1 |
| 10 | 43450K74N01 | CABLE COMP., RR. BRAKE(HI-LEX) | 1 |
| 11 | 35340K74N00 | SWITCH ASSY., FR. STOP | 1 |
| 12 | 45450K74N01 | CABLE COMP., FR. BRAKE | 1 |
| 13 | 53146K74N00 | GRIP COMP., THROTTLE | 1 |
| 14 | 53166KPL901 | GRIP, L. HANDLE | 1 |
| 15 | 53168KWA841 | HOUSING, UPPER THROTTLE(MINDA) | 1 |
| 16 | 53171K14900 | BRACKET, R. HANDLE LEVER | 1 |
| 17 | 53171KCC900 | COVER, R. HANDLE LEVER | 1 |
| 18 | 53172K74N00 | BRACKET, L. HANDLE LEVER | 1 |
| 19 | 53175KYY900 | LEVER COMP., R. HANDLE | 1 |
| 20 | 53178K74N00 | LEVER COMP., L. HANDLE | 1 |
| 21 | 53181K74N00 | LEVER COMP., BRAKE LOCK | 1 |
| 22 | 53182GW3980 | SPRING, PARKING LEVER RETURN | 1 |
| 23 | 53183K74N00 | PIN, PARKING LEVER PIVOT | 1 |
| 24 | 90113KYY900 | BOLT, HANDLE LEVER PIVOT | 2 |
| 25 | 90442147000 | WASHER, WAVE | 1 |
| 26 | 91796K74N00 | LEVER, CHOKE | 1 |
| 27 | 17961K74N00 | LEVER, CHOKE | 1 |
| 28 | 93500050100A | SCREW, PAN, 5X10 | 1 |
| 29 | 93500050200G | SCREW, PAN, 5X20 | 2 |
| 30 | 93500050220G | SCREW, PAN, 5X22 | 2 |
| 31 | 9405006000 | NUT, FLANGE, 6MM | 2 |
| 32 | 9410305000 | WASHER, PLAIN, 5MM | 1 |
| 33 | 957010602200 | BOLT, FLANGE, 6X22 | 1 |
| 34 | 06179K74N00 | 06179-K74-N00 CABLE SET, THROTTLE | 1 |
| 35 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
| 36 | 938910501607 | SCREW-WASHER, 5X16 | 2 |
| 37 | 938910501607 | SCREW-WASHER, 5X16 | 1 |
