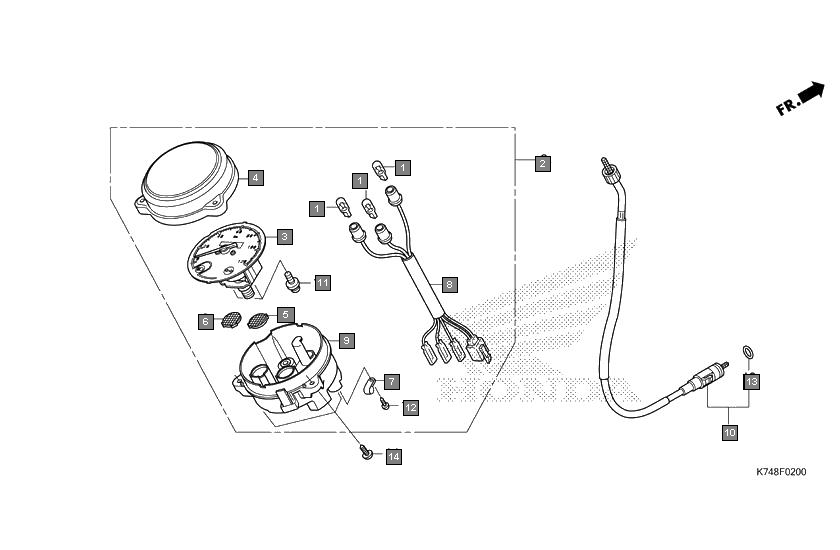

Scooters Navi NVA110H Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 3
2 37200K74N01 SPEEDOMETER ASSY.(KPH) 1
3 37210K74N01 SPEEDOMETER COMP.(KPH) 1
4 37211K74N01 GLASS 1
5 37213KRP901 LENS, PILOT TURN 1
6 37214KPL901 LENS, PILOT HIGH BEAM 1
7 37215KAF008 CLAMP 1
8 37224K74N01 SOCKET COMP. 1
9 37610K74N01 CASE, UNDER 1
10 44830KTE911 CABLE COMP., SPEEDOMETER 1
11 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
12 90109MZ5008 SCREW, TAPPING, 4X14 1
13 91352671003 O-RING, 8.5X1.5(ARAI) 1
14 91352671004 O-RING, 8.5X1.5(NOK) 1
15 9390324410 SCREW, TAPPING, 4X16 3
