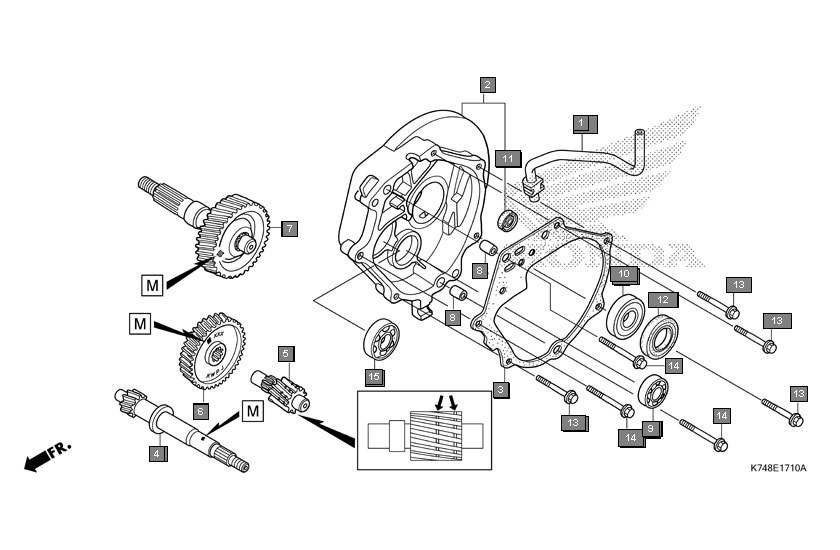

Scooters Navi NVA110H Engine Transmission(musashi)
Ref.No. Part No. Description Oty
1 11220GCC000 TUBE, MISSION BREATHER 1
2 21200KZK900 CASE COMP., MISSION 1
3 21395KWP901 GASKET, TRANSMISSION CASE 1
4 23411KVTF00 DRIVESHAFT(19T) 1
5 23411KWPD00 DRIVESHAFT(19T) 1
6 23421KVTG00 COUNTERSHAFT(13T) 1
7 23421KWPD00 COUNTERSHAFT(13T) 1
8 23422KWPF00 GEAR, COUNTER(51T) 1
9 91006KWPG31 BEARING, RADIAL BALL, 6201 (NBC) 1
10 23430KWPF00 GEAR COMP., FINAL(49T) 1
11 91006KWPG32 BEARING, RADIAL BALL, 6201 (FAG) 1
12 90701KPL900 DOWEL PIN, SPECIAL, 8X14 1
13 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
14 91006KWP901 BEARING, RADIAL BALL, 6201(NSK) 1
15 91008KWPD01 BEARING, RADIAL BALL, 6004UU(NSK) 1
16 91008KWPD02 BEARING, RADIAL BALL, 6004UU(FAG) 1
17 91008KWPD03 BEARING, RADIAL BALL, 6004UU(NEI LTD) 1
18 91203KPL901 OIL SEAL, 14X20X3.2 1
19 91225KWPD01 OIL SEAL, 27X42X7 1
20 957010603000 BOLT, FLANGE, 6X30 4
21 957010604000 BOLT, FLANGE, 6X40 3
22 961006301000 BEARING, RADIAL BALL, 6301 1
23 957010603000 BOLT, FLANGE, 6X30 1
24 957010604000 BOLT, FLANGE, 6X40 1
