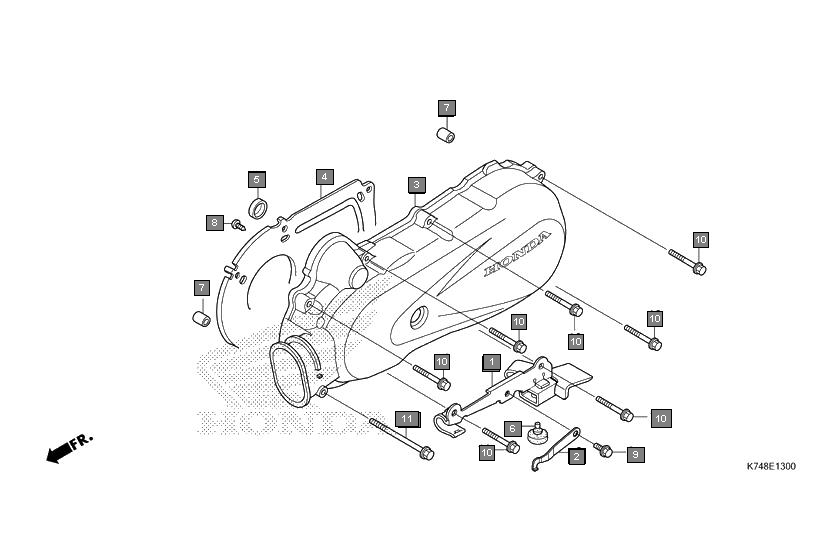

Scooters Navi NVA110H Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11230K74N00 CLAMPER COMP., RR. BRAKE CABLE 1
2 11230K24901 CLAMPER COMP., RR. BRAKE CABLE 1
3 11233KZK900 CLAMP, BRAKE CABLE 1
4 11233K24900 CLAMP, BRAKE CABLE 1
5 11341KWPG30 COVER, L. SIDE 1
6 11341KWPD00 COVER, L. SIDE 1
7 11342KWPD00 PLATE, L. COVER 1
8 11344GW3980 RUBBER, STARTER PINION HOLDER 1
9 50501KPL900 STOPPER, RUBBER 1
10 90701KPL900 DOWEL PIN, SPECIAL, 8X14 1
11 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
12 9390334120 SCREW, TAPPING, 4X8 1
13 9390334120 SCREW, TAPPING, 4X8 5
14 960010601000 BOLT, FLANGE, 6X10 1
15 960010603500 BOLT, FLANGE, 6X35 1
16 960010603500 BOLT, FLANGE, 6X35 7
17 960010607500 BOLT, FLANGE, 6X75 1
