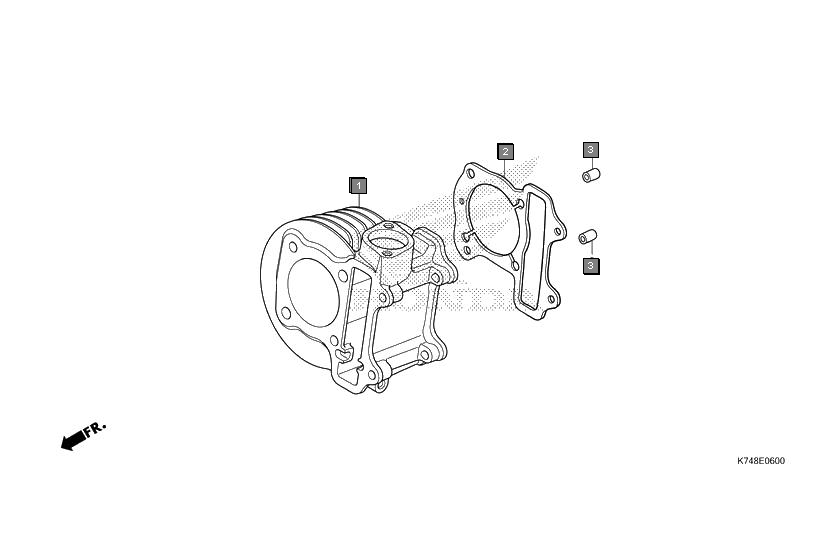

Scooters Navi NVA110H Engine Cylinder
Ref.No. Part No. Description Oty
1 12101KWPD00 CYLINDER 1
2 12191KWPD00 GASKET, CYLINDER 1
3 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
4 90701KPL900 DOWEL PIN, SPECIAL, 8X14 1
