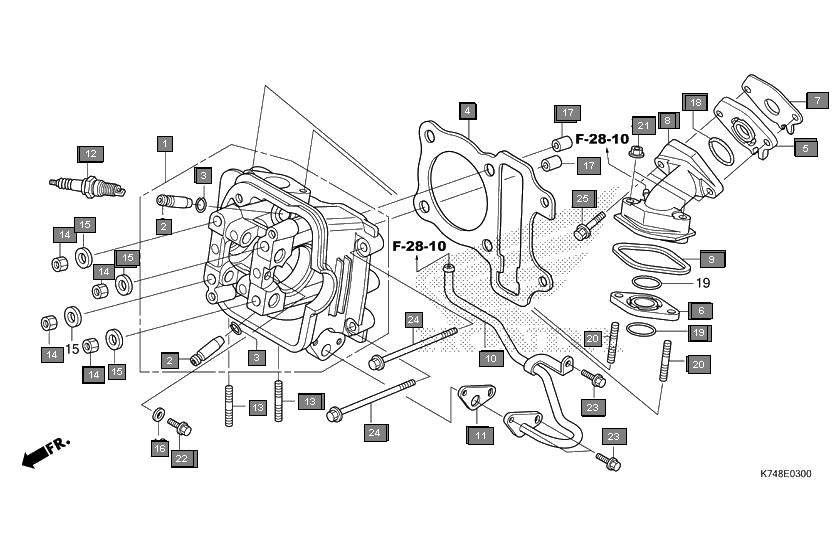

Scooters Navi NVA110H Engine Cylinder head
Ref.No. Part No. Description Oty
1 12200KWPD00 HEAD COMP., CYLINDER 1
2 12204KWPP00 GUIDE, VALVE(O.S.) 1
3 12204KWPP00 GUIDE, VALVE(O.S.) 2
4 12206KPL900 CLIP, VALVE GUIDE 2
5 12206KPL900 CLIP, VALVE GUIDE 1
6 12252KWPD00 GASKET, CYLINDER HEAD(0.75/1.00) 1
7 12251KWPD01 GASKET, CYLINDER HEAD(STD/0.25/0.50) 1
8 16211KWP900 INSULATOR A, CARBURETOR 1
9 16212KWP900 INSULATOR B, CARBURETOR 1
10 16229KRP601 GASKET A, CARBURETOR INSULATOR 1
11 17110K74N00 PIPE COMP., IN. 1
12 17113KWP900 RUBBER, IN. PIPE SEAL 1
13 18640KWPD00 PIPE COMP., AIR FEED 1
14 18645KVY900 GASKET, AIR FEED PIPE 1
15 31917KWPD01 PLUG, SPARK(MR7C-9N)(NGK) 1
16 90004KGF910 BOLT, STUD, 7X17 2
17 90004KGF910 BOLT, STUD, 7X17 1
18 90201GCC000 NUT, HEX., 7MM 4
19 90401GCC000 WASHER, 7.2X16X2.5 4
20 90201GCC000 NUT, HEX., 7MM 1
21 90402KWP900 WASHER, 6MM 1
22 90401GCC000 WASHER, 7.2X16X2.5 1
23 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
24 91304KWP900 O-RING, 25X2.4 1
25 90701KPL900 DOWEL PIN, SPECIAL, 8X14 1
26 91308GFM900 O-RING, 25.5X1.9 2
27 92900060350B BOLT, STUD, 6X35 2
28 91308GFM900 O-RING, 25.5X1.9 1
29 92900060350B BOLT, STUD, 6X35 1
30 9405006000 NUT, FLANGE, 6MM 2
31 957010601400 BOLT, FLANGE, 6X14 1
32 9405006000 NUT, FLANGE, 6MM 1
33 957010601800 BOLT, FLANGE, 6X18 3
34 957010610000 BOLT, FLANGE, 6X100 2
35 957010601800 BOLT, FLANGE, 6X18 1
36 960010602800 BOLT, FLANGE, 6X28 2
37 957010610000 BOLT, FLANGE, 6X100 1
38 960010602800 BOLT, FLANGE, 6X28 1
