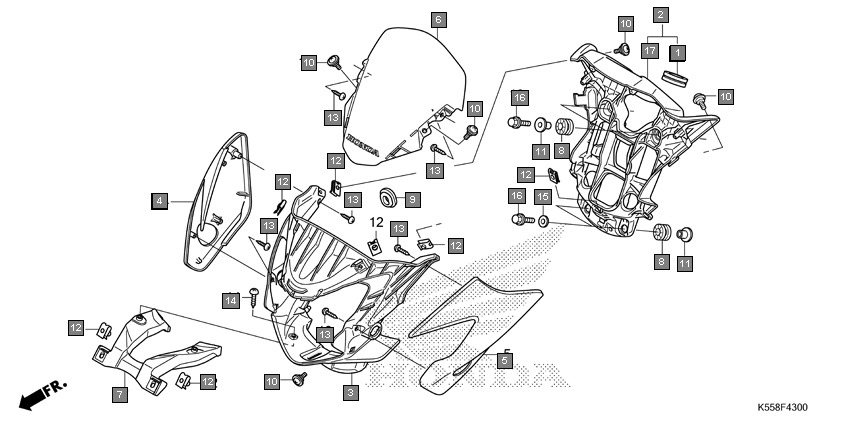

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 37312KT2000 | GROMMET, COMBINATION SWITCH | 1 |
2 | 61300K55600 | COVER ASSY., HEADLIGHT RR. | 1 |
3 | 61300K55900 | COVER ASSY, HEADLIGHT RR | 1 |
4 | 61301K55600 | COWL, FR. | 1 |
5 | 61305K55600ZE | GARNISH, R. FR. *R355M*.IMPERIAL RED METALLIC | 1 |
6 | 61305K55600ZC | GARNISH, R. FR. *NH1* BLACK | 1 |
7 | 61305K55600ZF | GARNISH, R. FR. *NH303M*. MAT AXIS GRAY METALLIC | 1 |
8 | 61305K55600ZB | GARNISH, R. FR. *PB396M* ATHLETIC BULE METALLIC | 1 |
9 | 61305K55600ZA | GARNISH, R. FR. *YR333M* SUNSET BROWN METALLIC | 1 |
10 | 61305K55600ZD | GARNISH, R. FR. *NHB63P* PEARL AMAZING WHITE | 1 |
11 | 61306K55600ZD | GARNISH, L. FR. *NHB63P* PEARL AMAZING WHITE | 1 |
12 | 61306K55600ZE | GARNISH, L. FR. *R355M*.IMPERIAL RED METALLIC | 1 |
13 | 61306K55600ZB | GARNISH, L. FR. *PB396M* ATHLETIC BULE METALLIC | 1 |
14 | 61306K55600ZA | GARNISH, L. FR.*YR333M* SUNSET BROWN METALLIC | 1 |
15 | 61306K55600ZF | GARNISH, L. FR. *NH303M*. MAT AXIS GRAY METALLIC | 1 |
16 | 61306K55600ZC | GARNISH, L. FR. *NH1* BLACK | 1 |
17 | 64100K55600ZA | WINDSCREEN SET(WL) *TYPE1* | 1 |
18 | 64315K55600 | STAY, FR. NUMBER PLATE | 1 |
19 | 64615KR1860 | RUBBER, LOWER COWL MOUNTING | 4 |
20 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 1 |
21 | 90101GE0000 | SCREW, HINGE PATCH | 5 |
22 | 90310KWS900 | COLLAR, FR. COWL | 4 |
23 | 90320GC3000 | NUT, SPRING, 5MM | 7 |
24 | 9390324280 | SCREW, TAPPING, 4X10 | 8 |
25 | 9390325220 | SCREW, TAPPING, 5X12 | 2 |
26 | 9410306800 | WASHER, PLAIN, 6MM | 2 |
27 | 957010602208 | BOLT, FLANGE, 6X22 | 4 |
