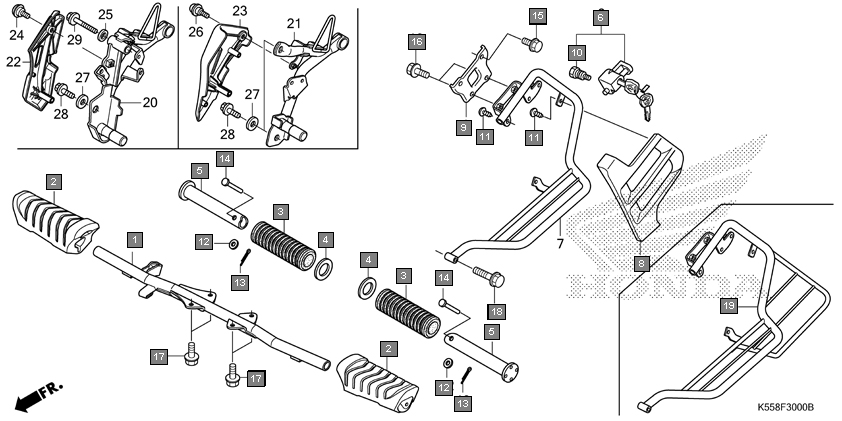

Motorcycles Livo CBF110H Frame Step/sari guard
Ref.No. Part No. Description Oty
1 50610K14960 BAR COMP., STEP 1
2 50661K14960 RUBBER, MAIN STEP 2
3 50710KTE910 RUBBER, PILLION STEP 2
4 50712405000 WASHER, PILLION STEP 2
5 50715405000 BAR, PILLION STEP 2
6 50730K14900 HOLDER SET, HELMET 1
7 51103K23A00 GUARD A, SARI 1
8 51104K14900 GUARD B, SARI 1
9 51105K55600 STAY, SARI GUARD 1
10 90107449000 BOLT, HELMET HOLDER SETTING 1
11 9390335220 SCREW, TAPPING, 5X12 2
12 9410106000 WASHER, PLAIN, 6MM 2
13 9420116120 PIN, SPLIT, 1.6X12 2
14 90131KWPF00 PIN, PILLION STEP 2
15 9501581000 PIN A, PILLION STEP 2
16 957010801400 BOLT, FLANGE, 8X14 2
17 957010801407 BOLT, FLANGE, 8X14 2
18 957010801808 BOLT, FLANGE, 8X18 4
19 957010803500 BOLT, FLANGE, 8X35 1
20 957020801400 BOLT, FLANGE, 8X14 2
21 957020801407 BOLT, FLANGE, 8X14 2
22 957020801808 BOLT, FLANGE, 8X18 4
23 957020803500 BOLT, FLANGE, 8X35 1
