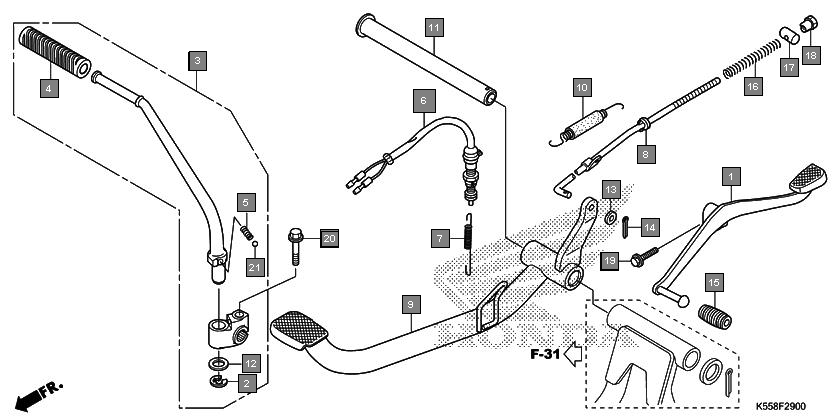

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 24701K14900 | PEDAL, GEAR CHANGE | 1 |
| 2 | 28293333000 | CLIP, KICK STARTER ARM | 1 |
| 3 | 28300K14900 | ARM ASSY., KICK STARTER | 1 |
| 4 | 28311KWS900 | RUBBER, KICK STARTER | 1 |
| 5 | 28333KK0000 | SPRING, KICK STARTER | 1 |
| 6 | 35350K14961 | SWITCH ASSY., RR. STOP(MINDA) | 1 |
| 7 | 35350K14962 | SWITCH ASSY., RR. STOP(JAY USHIN) | 1 |
| 8 | 35357K14900 | SPRING, STOP SWITCH | 1 |
| 9 | 43451K14900 | ROD COMP., RR. BRAKE | 1 |
| 10 | 46500K23900 | PEDAL COMP., BRAKE | 1 |
| 11 | 46510K21900 | SPRING SET, BRAKE PEDAL | 1 |
| 12 | 50526K23900 | SHAFT, MAIN STAND PIVOT | 1 |
| 13 | 90505KRM860 | WASHER, 15.5X22 | 1 |
| 14 | 9410105800 | WASHER, PLAIN, 5MM | 1 |
| 15 | 9420120120 | PIN, SPLIT, 2.0X12 | 1 |
| 16 | 9501140000 | RUBBER, CHANGE PEDAL | 1 |
| 17 | 9501473100 | SPRING A, BRAKE ROD | 1 |
| 18 | 9501532001 | JOINT B, BRAKE ARM | 1 |
| 19 | 9501542000 | NUT B, BRAKE ROD ADJUSTING | 1 |
| 20 | 957010602000 | BOLT, FLANGE, 6X20 | 1 |
| 21 | 957010803500 | BOLT, FLANGE, 8X35 | 1 |
| 22 | 9621108000 | BALL, STEEL, #8(1/4) | 1 |
| 23 | 957020602000 | BOLT, FLANGE, 6X20 | 1 |
| 24 | 957020803500 | BOLT, FLANGE, 8X35 | 1 |
| 25 | 28300K55900 | ARM ASSY, KICK STARTER | 1 |
| 26 | 35350K55901 | SWITCH ASSY, RR STOP(JAY USHIN) | 1 |
| 27 | 35350K63D31 | SWITCH ASSY., RR. STOP | 1 |
