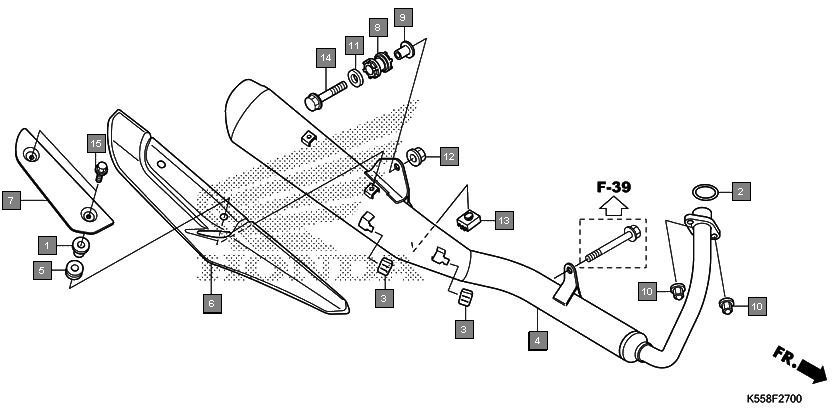

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18201KRY970 | COLLAR, MUFFLER MOUNTING | 2 |
2 | 18291GE2921 | GASKET, EX. PIPE | 1 |
3 | 18293MCAA20 | RUBBER, PROTECTOR PACKING | 2 |
4 | 18300K55600 | MUFFLER COMP., EX. | 1 |
5 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 2 |
6 | 18355K55600 | COVER A, MUFFLER | 1 |
7 | 18356K38900 | COVER B, MUFFLER | 1 |
8 | 18421KBA900 | RUBBER, MUFFLER MOUNTING | 1 |
9 | 18422KBA900 | COLLAR, MUFFLER MOUNTING | 1 |
10 | 90305KSP900 | NUT, EXHAUST PIPE, 8MM | 2 |
11 | 90505KY4900 | WASHER, PLAIN, 8MM | 1 |
12 | 9405008000 | NUT, FLANGE, 8MM | 1 |
13 | 9501161000 | RUBBER A, STAND STOPPER | 1 |
14 | 958010804508 | BOLT, FLANGE, 8X45 | 1 |
15 | 960010601402 | BOLT, FLANGE, 6X14 | 2 |
16 | 958020804508 | BOLT, FLANGE, 8X45 | 1 |
17 | 18300K55900 | MUFFLER COMP, EX | 1 |
18 | 18355K55900 | COVER A, MUFFLER | 1 |
19 | 18356K55600 | COVER B, MUFFLER | 1 |
