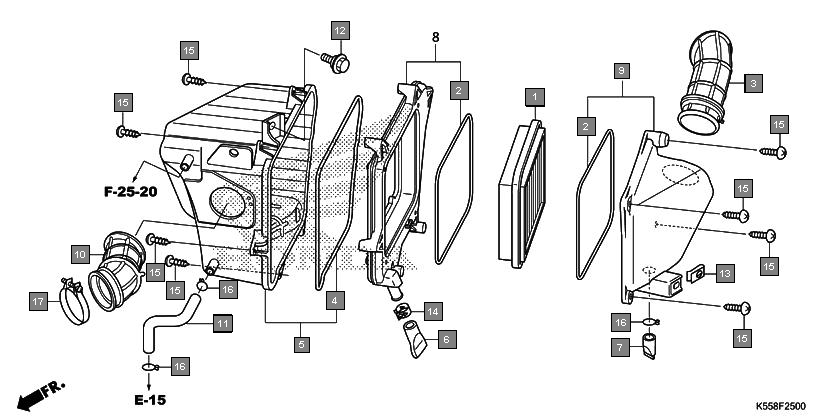

Motorcycles Livo CBF110H Frame Air cleaner
Ref.No. Part No. Description Oty
1 17211K14900 ELEMENT COMP., AIR CLEANER 1
2 17211K14901 ELEMENT COMP., AIR CLEANER 1
3 17219K63D30 DUCT, AIR CLEANER 1
4 17225K23901 CASE SUB ASSY., AIR CLEANER 1
5 17245K23901 COVER SUB ASSY., AIR CLEANER 1
6 17371K63D30 TUBE, BREATHER 1
7 9500202130 CLIP, TUBE(B12.5) 3
