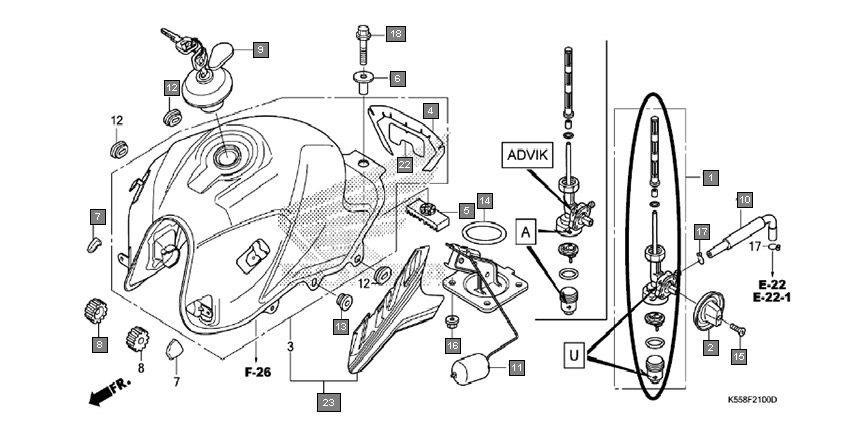

Motorcycles Livo CBF110H Frame Fuel tank
Ref.No. Part No. Description Oty
1 17500K55900ZC TANK ASSY, FUEL(WL) *PB396M*ATHLETIC BLUE METALLIC 1
2 17500K55900ZB TANK ASSY, FUEL(WL) *R355M*IMPERIAL RED METALLIC 1
3 17500K55900ZE TANK ASSY, FUEL(WL)*NH1*BLACK 1
4 17500K55900ZA TANK ASSY, FUEL *YR333M*SUNSET BROWN METALLIC 1
5 17500K55900ZF TANK ASSY, FUEL*NHB63P*PEARL AMAZING WHITE 1
6 17500K55900ZD TANK ASSY, FUEL *NH303M*MAT AXIS GRAY METALLIC 1
7 17620KTED03 CAP COMP., FUEL FILLER (JAY USHIN) 1
8 37800K55901 FUEL UNIT 1
