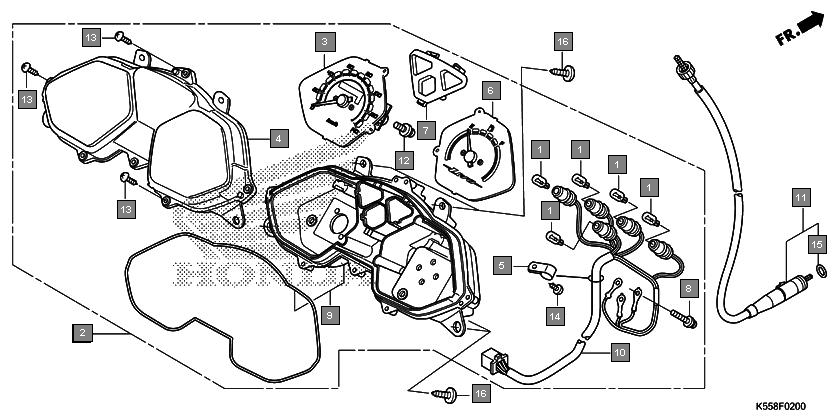

Motorcycles Livo CBF110H Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 37100K55603 METER ASSY., COMBINATION(KPH). 1
3 37100K55601 METER ASSY., COMBINATION(KPH) 1
4 37210K55603 SPEEDOMETER COMP.(KPH) 1
5 37210K55601 SPEEDOMETER COMP.(KPH) 1
6 37211K55601 LENS 1
7 37215KS3901 CLAMP 1
8 37300K55601 METER COMP., FUEL 1
9 37302K55601 REFLECTOR ASSY. 1
10 37305KE5008 SCREW-WASHER, 3X22 3
11 37610K55601 CASE ASSY., UNDER 1
12 37619K55601 SOCKET COMP. 1
13 44830K14901 CABLE COMP., SPEEDOMETER 1
14 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
15 90101KY6008 SCREW, TAPPING, 3X14 6
16 90109MZ5008 SCREW, TAPPING, 4X14 1
17 91256KK3840 O-RING, 10X1.5 1
18 9390335310 SCREW, TAPPING, 5X16 1
