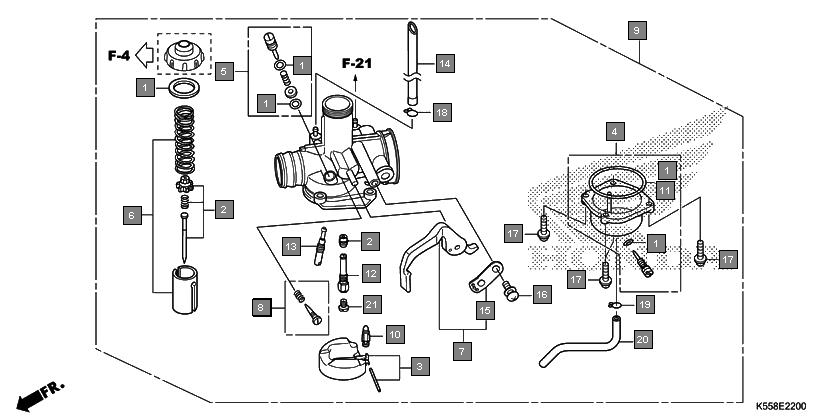

Motorcycles Livo CBF110H Engine Carburetor
Ref.No. Part No. Description Oty
1 16010K23931 GASKET SET 1
2 16012K55601 NEEDLE SET, JET 1
3 16013K23931 FLOAT SET 1
4 16015K23931 CHAMBER SET, FLOAT 1
5 16016K23931 SCREW SET A 1
6 16022K23931 VALVE SET, THROTTLE 1
7 16025K23931 LEVER SET, CHOKE 1
8 16028K55305 SCREW SET B 1
9 16028K23931 SCREW SET B 1
10 16100K55601 CARBURETOR ASSY.(VM17B A) 1
11 16155KVRC02 VALVE COMP., FLOAT 1
12 16163K23931 GASKET, FLOAT CHAMBER 1
13 16165K23931 HOLDER, NEEDLE JET 1
14 16180K23931 JET, SLOW, #12.5 1
15 16198K23931 TUBE, AIR VENT 1
16 16975K23931 PLATE, STAY 1
17 93500050101H SCREW, PAN, 5X10 1
18 938920401608 SCREW-WASHER, 4X16 4
19 9500202100 CLIP, TUBE(B10) 1
20 9500202659 CLIP, TUBE(B6.5) 1
21 950053540050 TUBE, 3.5X400(95005-35001-50M) 1
22 99131K230950 JET, MAIN, #95 1
