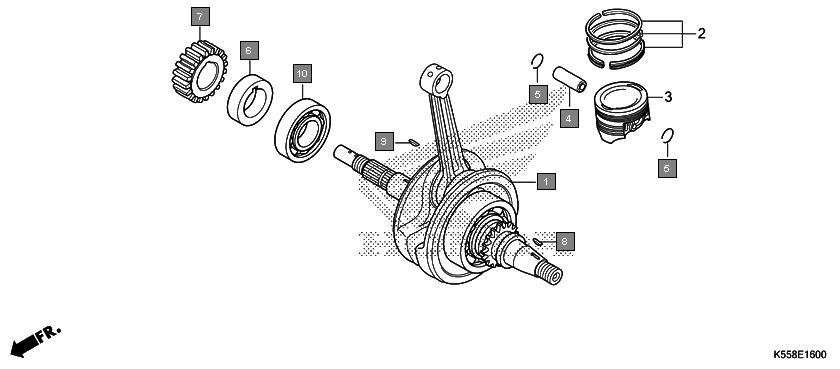

Motorcycles Livo CBF110H Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13101K23900 PISTON 1
2 13102K23900 PISTON(0.25) 1
3 13103K23900 PISTON(0.50) 1
4 13111KWS900 PIN, PISTON 1
5 13115K23900 CLIP, PISTON PIN, 12MM 2
6 13412KWS900 COLLAR, PRIMARY DRIVE GEAR 1
7 23121KWS900 GEAR, PRIMARY DRIVE(18T) 1
8 90741KFB000 KEY, WOODRUFF, 4MM 1
9 90741KGH900 KEY, WOODRUFF, 4MM 1
10 91001K14901 BEARING, RADIAL BALL, 63/22 (NEI) 1
11 91001K23902 BEARING, RADIAL BALL, 63/22 (SKF) 1
12 91001KWS901 BEARING, RADIAL BALL, 63/22 (NSK) 1
13 13000K63D30 CRANKSHAFT COMP. 1
