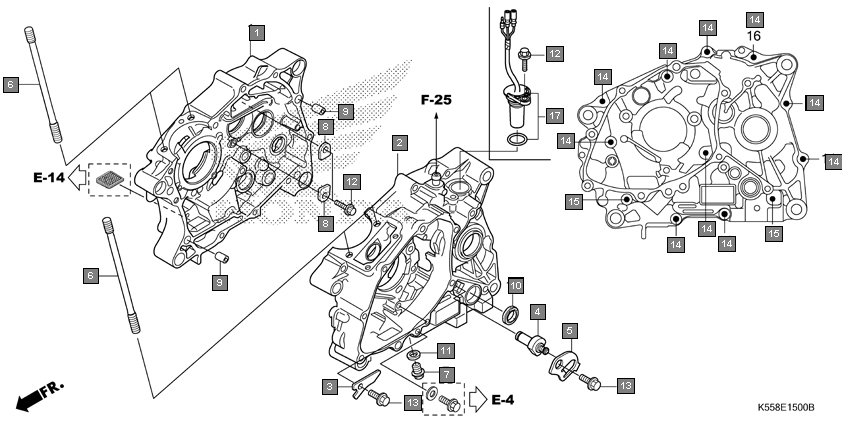

Motorcycles Livo CBF110H Engine Crankcase
Ref.No. Part No. Description Oty
1 11100K55900 CRANKCASE COMP, R 1
2 11200K55900 CRANKCASE COMP, L 1
3 11218KWS900 PLATE, OIL STOPPER 1
4 35750KWS901 CONTACT, NEUTRAL SWITCH 1
5 35755KWS901 PLATE, CONTACT FIXING 1
6 90031KZAW00 BOLT, CYLINDER STUD 4
7 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
8 90441KRM840 PLATE, BEARING HOLDER 2
9 90703KWS900 DOWEL PIN, 10X14 2
10 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
11 91203KSP912 OIL SEAL, 14X22X5(FENNER) 1
12 9410912000 WASHER, DRAIN PLUG, 12MM 1
13 957010601600 BOLT, FLANGE, 6X16 2
14 957020601600 BOLT, FLANGE, 6X16 2
15 960010601400 BOLT, FLANGE, 6X14 2
16 960010604000 BOLT, FLANGE, 6X40 9
17 960010606000 BOLT, FLANGE, 6X60 2
18 960010603200 BOLT, FLANGE, 6X32 1
