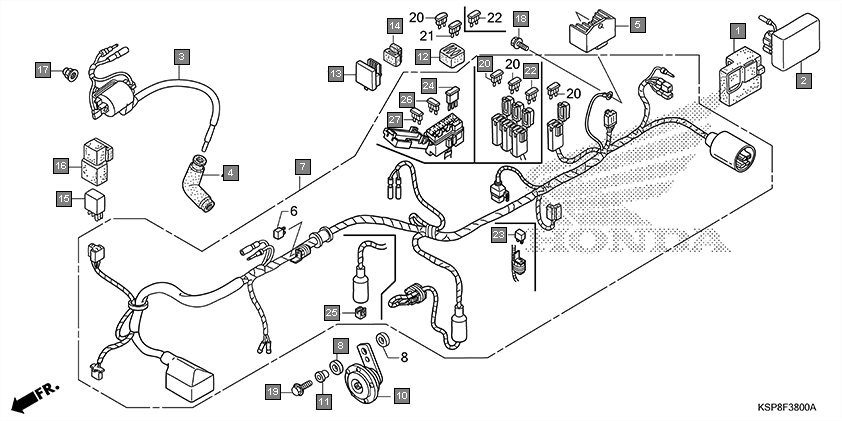

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30401KSP911 | CUSHION, C.D.I. UNIT | 1 |
2 | 30410KSPD01 | C.D.I. UNIT | 1 |
3 | 30500KSPB11 | COIL ASSY., IGNITION | 1 |
4 | 30700KSPB01 | CAP ASSY., NOISE SUPPRESSOR | 1 |
5 | 31600KSP861 | RECTIFIER COMP., REGULATOR | 1 |
6 | 31700HM5630 | RECTIFIER ASSY., SILICON | 1 |
7 | 32100KSPD00 | HARNESS, WIRE | 1 |
8 | 33714KL3620 | RUBBER, TAILLIGHT BRACKET | 2 |
9 | 38110KWF952 | HORN COMP. | 1 |
10 | 38117KFE701 | COLLAR, HORN SETTING | 1 |
11 | 38201KSP910 | RUBBER, SPARE FUSE SETTING | 1 |
12 | 38301KVTG01 | RELAY COMP., WINKER | 1 |
13 | 38306K14931 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 |
14 | 38502KSP910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 |
15 | 38506KSP910 | SUSPENSION, POWER RELAY | 1 |
16 | 90201415000 | NUT, CAP, 6MM | 1 |
17 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
18 | 957010602008 | BOLT, FLANGE, 6X20 | 1 |
19 | 9820031500 | FUSE, BLADE(15A) | 2 |
20 | 9820032000 | FUSE, BLADE(20A) | 1 |
