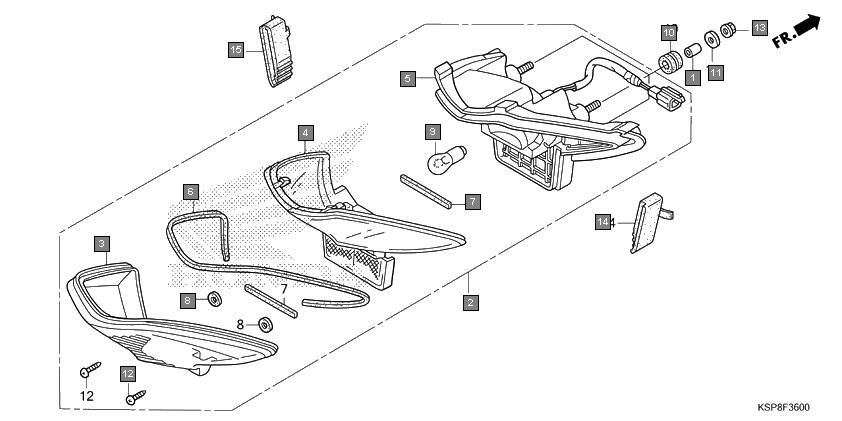

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33603053650 | COLLAR | 3 |
2 | 33701KSPD01 | TAILLIGHT UNIT(12V 21/5W) | 1 |
3 | 33702KSP911 | LENS, TAILLIGHT | 1 |
4 | 33703KSP911 | LENS COMP., TAILLIGHT INNER | 1 |
5 | 33710KSP911 | BASE COMP., TAILLIGHT | 1 |
6 | 33715KSP911 | PACKING(1) | 1 |
7 | 33716KSP911 | PACKING(2) | 2 |
8 | 33717KSP911 | PACKING(3) | 2 |
9 | 34907KVN901 | BULB, TAIL & STOP LIGHT (12V 21/5W) | 1 |
10 | 77209KAG900 | RUBBER, SEAT STAY MOUNTING | 3 |
11 | 90563355000 | WASHER, WHEEL, 6MM | 3 |
12 | 9390124480 | SCREW, TAPPING, 4X16 | 2 |
13 | 9405006000 | NUT, FLANGE, 6MM | 3 |
14 | 33731KSP900 | RUBBER, R. TAILLIGHT MOUNTING | 1 |
15 | 33732KSP900 | RUBBER, L. TAILLIGHT MOUNTING | 1 |
