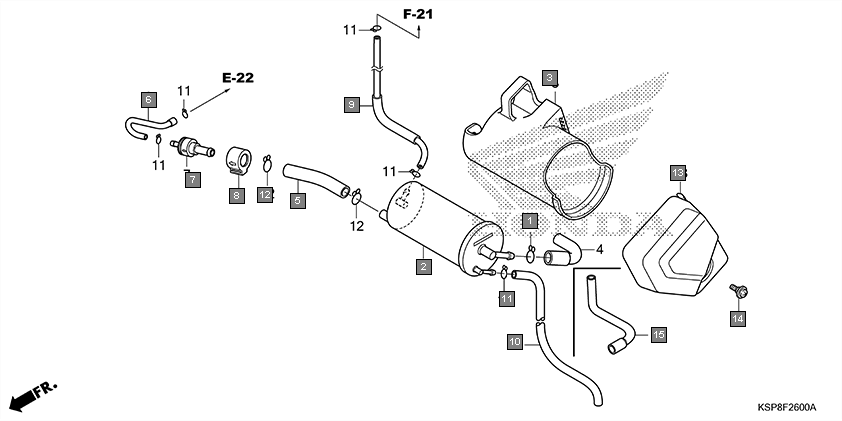

Motorcycles CB Unicorn CBF150MH Frame Canister
Ref.No. Part No. Description Oty
1 16163K43900 CLIP 1
2 17310K43902 CANISTER COMP 1
3 17311KSPD00 RUBBER, CANISTER 1
4 17412KSPD00 TUBE, AIR 1
5 950017506540 TUBE, FUEL, 7.5X65 (95001-75001-60M) 1
6 17417KSPD00 TUBE, PURGE CARBURETOR 1
7 17440K43901 VALVE, ONE WAY 1
8 17441K43900 RUBBER, ONE WAY VALVE 1
9 17411KSPD00 TUBE, CHARGE 1
10 950014558540 TUBE, 4.5X585(95001-45001-60M) 1
11 90652KWPF00 CLIP, TUBE(B8) 5
12 9500202120 CLIP, TUBE(B12) 2
13 83650KSPD00 COVER, L. CANISTER 1
14 91509GE2760 SCREW, PAN, 5X11.5 1
