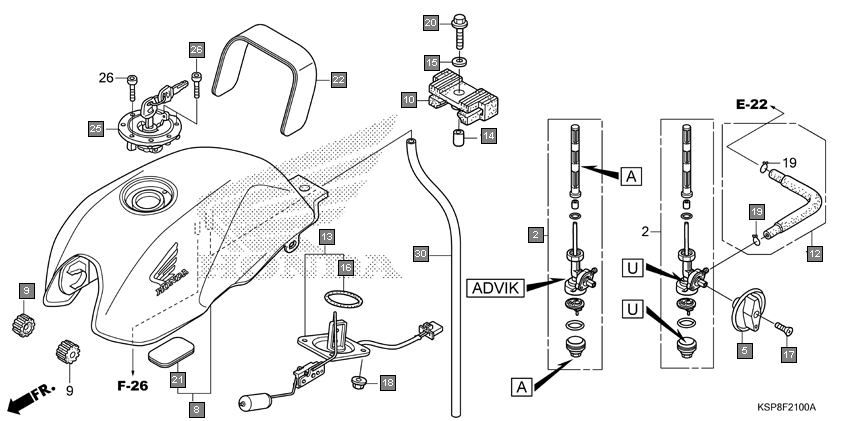

Motorcycles CB Unicorn CBF150MH Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KSP900 COCK ASSY., FUEL 1
2 16955KSP900 LEVER, FUEL COCK 1
3 17530KSPD00ZA TANK SUB ASSY., FUEL(WL) *R320P* PEARL SIENA RED 1
4 17530KSPD00ZC TANK SUB ASSY., FUEL(WL) *NHA04M* GENY GRAY METALLIC 1
5 17530KSPD00ZB TANK SUB ASSY., FUEL(WL) *NHB05P* PEARL IGNEOUS BLACK 1
6 17611KFN850 CUSHION, FR. FUEL TANK 2
7 17613KSP900 CUSHION, FUEL TANK RR. 1
8 17681KSP860 TUBE, FUEL 1
9 37080KSP860 FUEL UNIT SET 1
10 80101KFN850 COLLAR, 8X12 1
11 90534MV4000 WASHER, 8.5X28 1
12 91305443740 O-RING, 39.5X5 1
13 93500040250G SCREW, PAN, 4X25 1
14 9405006000 NUT, FLANGE, 6MM 4
15 9500202100 CLIP, TUBE(B10) 2
16 957010802508 BOLT, FLANGE, 8X25 1
17 17504KSP860 FILM, TANK PROTECTOR 1
18 17519KSP860 PROTECTOR, FUEL TANK 1
19 17620KSP862 CAP COMP., FUEL FILLER 1
20 90111KSP860 BOLT, SOCKET, 4X21 3
21 950058070020 TUBE, 8X700(95005-80001-20M) 1
22 16950KSP901 COCK ASSY., FUEL (UCAL) 1
23 16950KSP902 COCK ASSY., FUEL (ADVIK) 1
