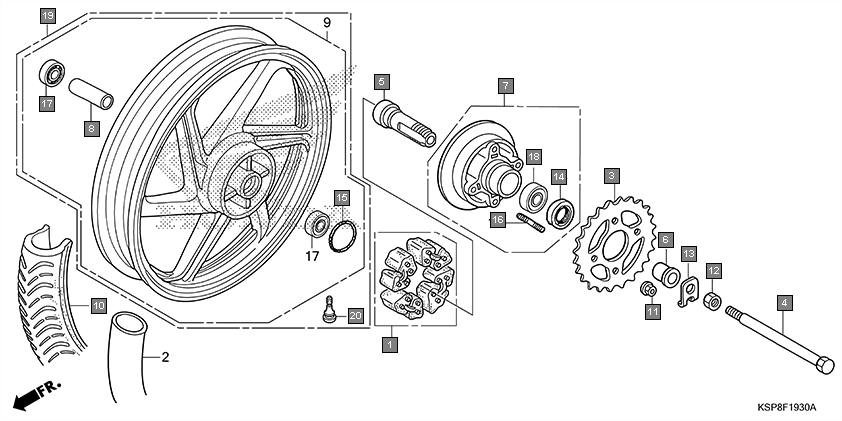

Motorcycles CB Unicorn CBF150MH Frame Rear wheel
Ref.No. Part No. Description Oty
1 06410KSP900 DAMPER SET, WHEEL 1
2 06427KSP870 TUBE SET, TUFF UP 1
3 41201KVE900 SPROCKET, FINAL DRIVEN(43T) 1
4 42301KSP900 AXLE, RR. WHEEL 1
5 42303KSP900 SLEEVE, RR. WHEEL AXLE 1
6 42311KSP900 COLLAR, RR. WHEEL SIDE 1
7 42615KSP930 FLANGE SUB ASSY., FINAL DRIVEN 1
8 42620KSP900 COLLAR, RR. AXLE DISTANCE 1
9 42650KSP870 WHEEL SUB ASSY., RR. 1
10 42711KFN852 TIRE, RR.(MRF)(100/90-18 56P) 1
11 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 4
12 90307KSP900 NUT, RR. AXLE SLEEVE 1
13 90559KSP900 WASHER, L. RR. AXLE 1
14 91253KSP901 DUST SEAL, 30X47X8 1
15 91352KSP900 O-RING, 51X2 1
16 92915100250E BOLT, STUD, 10X25 4
17 961406302010 BEARING, RADIAL BALL, 6302U 2
18 961506005010 BEARING, RADIAL BALL, 6005UU 1
